2.4 GHz 17 dBi 90 Degree Sector Panel Antenna

Item # HG2417P-090
Availability
Available Quantity: 16
Price Table
Quantity Price
1 - 9 $234.85
10 - 24 $216.06
25 - 99 $197.27
100 + Call Us
Add to Cart

Description

This item may be subject to additional Tariff Surcharge of $35.23 (15%) each.

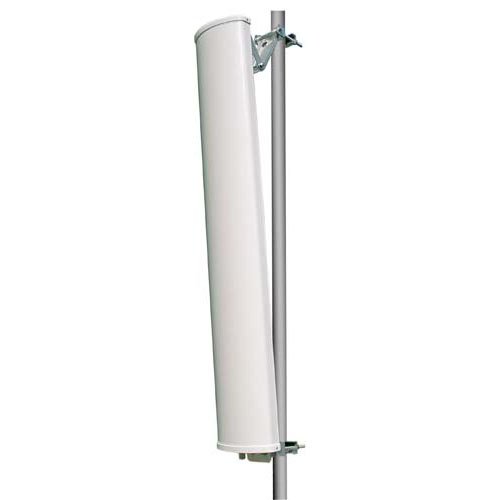

The HyperLink HG2417P-090 Sector Panel WiFi Antenna combines high gain with a wide 90° beam-width. It is a professional quality “cell site” antenna designed primarily for service providers in the 2.4GHz ISM band. Applications include IEEE 802.11b, 802.11g and 802.11n wireless LAN systems.

Rugged and Weatherproof

This antenna features a heavy-duty plastic radome for all-weather operation. The mounting system adjusts from 0 to 20 degrees down-tilt.

Ideal for Wireless Internet "Cell" Sites

This WiFi antenna is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 90 degrees.

For additional information and complete specifications, click on the data sheet link in the Downloads tab.


Features
  • 90° beam-width
  • All weather operation
  • 20° Down-Tilt Mounting Bracket
  • Includes Mast Mounting Hardware
  • Integral N-Female Connector
Application
  • 2.4 GHz ISM Band
  • WiFi & Wireless Video Systems
  • Wireless Internet Provider "cell" sites
  • Bluetooth® & Public Wireless Hotspot
  • IEEE 802.11b, 802.11g and 802.11n Wireless LAN Applications
