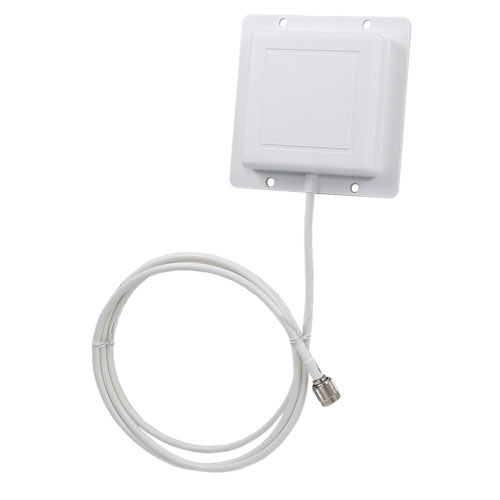

2.4 GHz 8 dBi Flat Patch Antenna - 4ft N-Male Connector


RE,ANT,Patch 2.4GHz 8dBi
Roll over image to zoom in
RE,ANT,Patch 2.4GHz 8dBi RE,ANT,Patch 2.4GHz 8dBi
L-com Item # RE09P-NM

List Price$39.95
Your Price 1-9$39.95
10-24$36.75
25-99$33.56
100 +Call Us
Availability: Call Us
Quantity
Need a different connector for this antenna?

The HyperGain RE09P is a compact flat patch Wi-Fi range extender antenna providing 8 dBi gain with very broad coverage. It is suitable for both indoor and outdoor applications in the 2.4GHz ISM band, including IEEE 802.11b, 802.11g and 802.11n, and for public wireless hotspot applications.

Similar to the features of the HG2409P series, the RE09P series antennas feature 4 feet of low-loss coax cable enabling them to be directly connected to a radio connection without the additional expense of a pigtail cable.

The RE09P WiFi antenna is lightweight and features an aesthetic UV-stable, UL flame rated white plastic radome which can also be painted to match the room or building structure. The RE09P can be installed for horizontal or vertical polarization. It can be wall or ceiling mounted, as well as mast-mounted using U-bolts. Optional mounting brackets are available.

Custom Connectors
If you need a custom connector for this antenna, please contact sales for connector options, prices and availability.

This item is non-cancelable / non-returnable.


L-com Item #RE09P-NM
ManufacturerL-com
UPC # (More)822335065482
RoHS StatusRoHS Compliant RoHS Compliant(More)
Features:
  • Compact size, 4.5" Square with low-loss coax cable
  • Durable UV-stable, UL flame rated radome
  • Low-loss solid brass element & DC Short lightning protecting
  • 4 feet low-loss coax cable for direct connection to radio without the need of a pigtail
  • Can be installed for either vertical or horizontal polarization
Applications:
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11n (Pre-N, Draft-N) Wireless LAN Applications
  • Bluetooth® & Public Wireless Hotspot
  • WiFi & Wireless Video Systems

Specifications

Electrical Specifications

Frequency 2400-2500 MHz
Gain 8 dBi
Horizontal Beam Width 75 degrees
Vertical Beam Width 65 degrees
Impedance 50 Ohm
Max. Input Power 25 Watts
VSWR < 1.5:1 avg.
Lightning ProtectionDC Short

Mechanical Specifications

Weight 0.4 lbs. (.18 Kg)
Dimensions 4.5 x 4.5 x .9 inches
114 x 114 x 23 mm
Radome Material UV-inhibited Polymer
Mounting Four ¼ in. (6.3 mm) Holes
Polarization Horizontal or Vertical
Operating Temperature-40° C to 85° C
(-40° F to 185° F)
Wind Survival >150 MPH (241 KPH)
RoHS Compliant Yes

RF Antenna Patterns

Due to the nature of radio frequency propagation and the numerous factors that can affect operating range we do not guarantee that you will achieve any specific range for your application.

Factors Affecting Range and Performance of All Wireless LAN Systems
