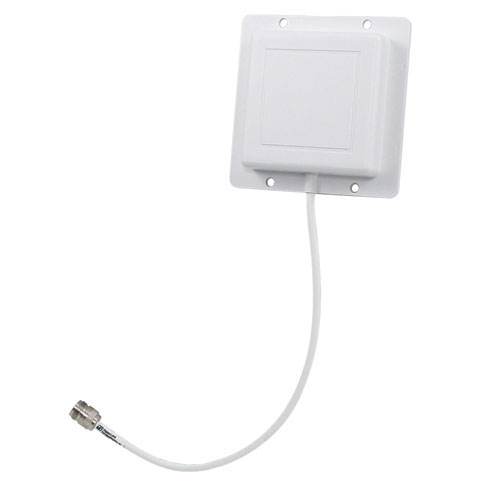

2.4 GHz 8 dBi Flat Patch Antenna - 12in N-Female Connector

SKU HG2409P-NF
Available to Ship 279
Quantity Price
1 - 24 $68.99
25 - 49 $62.09
50 - 99 $55.19
100 + Call Us
Price $68.99

All Prices are in US Dollars and do not include duties



L-com's HG2409P high performance directional flat patch antenna series are suitable for indoor and outdoor applications in the 2.4 GHz ISM band. These flat patch antennas provide 8 dBi of gain and a durable UV-stable, UL flame rated radome that can be painted. This flat patch antenna series includes many connector options including N- Male, N-Female, SMA, TNC, and MC-Card. Additionally, these patch antennas can be installed for either vertical or horizontal polarization.

Features
  • Compact size, 4.5" Square with low-loss coax cable
  • Low-loss solid brass element & DC Short lightning protecting
  • Optional pigtails and mounting brackets available
  • Can be installed for either vertical or horizontal polarization
  • Durable UV-stable, UL flame rated patch antenna radome

Application
  • IEEE 802.11b, 802.11g, 802.11n (Pre-N, Draft-N) Wireless LAN Applications
  • WiFi & Wireless Video Systems
  • 2.4 GHz ISM Band
  • Bluetooth® & Public Wireless Hotspot


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
