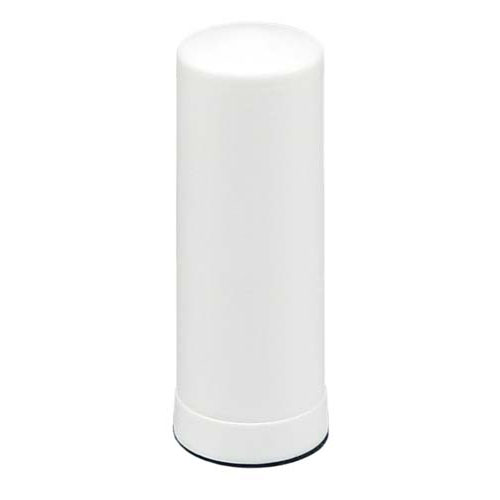

Cellular/WiFi Multi-Band 3 dBi White Omnidirectional Mobile Antenna - NMO Connector

SKU HG72703UR-NMOW
QTY available 171
Quantity Price
1 - 24 $65.99
25 - 49 $59.39
50 - 99 $52.79
100 + Call Us
Price $65.99

All Prices are in US Dollars and do not include duties



The HyperLink HG72703UR-NMOW is a compact 3 dBi omnidirectional antenna specifically designed for DAS (Distributed Antenna Systems). The HG72703UR-NMOW combines several different frequency bands to allow multi-user options. They are ideal for multipoint and mobile applications.

Measuring only 3.8 inches long, the HG72703UR-NMOW features an aesthetic white ABS plastic radome (also available in black). It is designed with a standard TAD/NMO Motorola-type connection that allows for ease of installation to similar TAD/NMO mounting systems. Because of its near-invisible design this antenna is ideal for use on vehicles where vandal-resistance and aesthetics are important. Sold separately, fixed as well as magnetic NMO mounts are also available from L-com.

Click on Downloads tab for additional information and complete specifications.


Features
  • Fixed or magnetic mounts available
  • Compact size
  • Frequency coverage for 700 MHz, 850 MHz, AWS and PCS bands
  • TAD/NMO mounting
  • White radome enclosed, ideal for outdoor use

Application
  • LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications
  • Cellular and LTE networks
  • DAS (Distributed Antenna Systems)
  • Mobile applications
  • Public safety


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Mobile
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
NMO Mount
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
3:1
