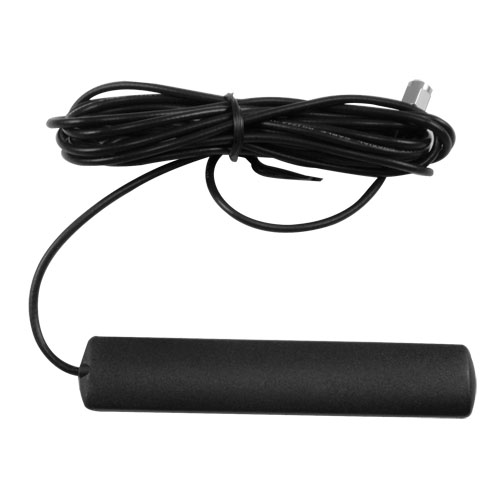

900MHz to 2.5GHz Multi-Band 2dBi 1/4 Wave Blade Antenna

SKU HG924-2TP-RSP
Available to Ship 26
Quantity Price
1 - 24 $34.99
25 - 49 $33.24
50 - 99 $31.49
100 + Call Us
Price $34.99

All Prices are in US Dollars and do not include duties



The Multi-Band design of these antennas eliminates the need to purchase different antennas for each frequency. Model types include standard "Rubber Duck" style antennas and "Desk Top" style antennas with sticky mounts. The antenna covers the frequencies 900MHz through 2500MHz.

Features
  • 3-Meter cable with RP-SMA Plug connector
  • Broad Band Coverage for many applications
  • Minimum obserable mounting options

Application
  • Cellular and Data Band Applications
  • 900MHz ISM Band, 1800-2100MHz and 2200-2500MHz
  • GSM/PCS/UMTS
  • LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M
  • Multi-Band GSM/PCS and Data antenna


Product Resources

Key Specifications

Key Specifications

Antenna Type
Mobile
Polarization
Vertical
Connector 1 Polarity
Reverse Polarity
Connector Series
SMA
Connector Gender
Plug
Impedance
50 Ohm
Maximum Input VSWR
2:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
