2.4 GHz 9 dBi Yagi Antenna - 12in RP-SMA Plug Connector

SKU HG2409Y-RSP
Available to Ship 2
Quantity Price
1 - 24 $125.99
25 - 49 $113.39
50 - 99 $100.79
100 + Call Us
Price $125.99

All Prices are in US Dollars and do not include duties



Superior Performance

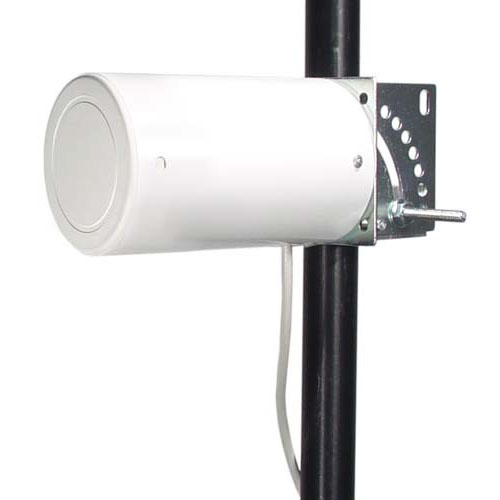

The HyperGain HG2409Y Radome Enclosed Yagi WiFi Antenna features high gain and a 60° beam-width. It is ideally suited for directional and multipoint IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth®, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band. The unique design of this antenna allows it to be installed for either vertical or horizontal polarization.

Rugged and Weatherproof
This WiFi antenna is enclosed within a UV-stable, UL flame rated radome for all-weather operation.The HG2409Y antenna is supplied with a 60 degree tilt and swivel mast mount kit.

Features
  • DC Short lightning protection
  • UV-stable, UL flame rated radome with 60° beam-width
  • 12 inch coax lead terminated with RP-SMA Plug Connector
  • Can be installed for either vertical or horizontal polarization
  • Light weight, & includes tilt and swivel mast mount

Application
  • Bluetooth® & public wireless hotspot
  • 2.4 GHz ISM Band
  • Directional and multipoint applications
  • IEEE 802.11b, 802.11g, IEEE 802.11n Wireless LAN applications
  • WiFi & wireless video systems


Product Resources

Key Specifications

Key Specifications

Antenna Type
Yagi
Polarization
Vertical or Horizontal
Connector 1 Polarity
Reverse Polarity
Connector Series
SMA
Connector Gender
Plug
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
