2.4/5.8GHz Triple Element, Dual Polarity Flat Panel Antenna - N-Female Connectors

SKU HG2458-14DP-3NF
Available to Ship 37
Quantity Price
1 - 9 $249.99
10 - 24 $229.99
25 - 99 $209.99
100 + Call Us
Price $249.99

All Prices are in US Dollars and do not include duties

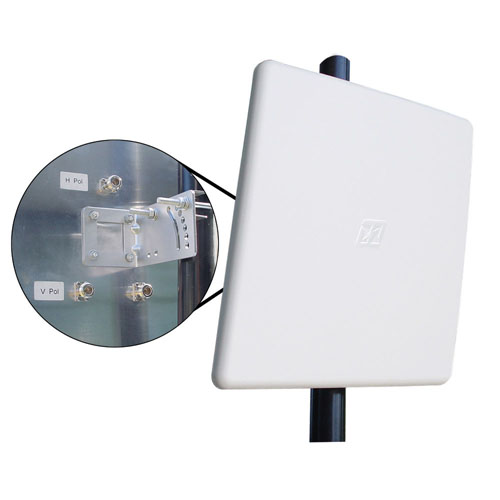

The HyperLink Wireless HG2458-14DP-3NF Flat Panel Antenna combines vertical and horizontal polarization with high gain over multiple frequencies in a single enclosure. It is a professional quality antenna designed primarily for MIMO point-to-multipoint and point-to-point applications in the 2.4 GHz and 5.8GHz frequency bands. In addition, this antenna is compatible with 802.11ac applications which provides up to 1 Gbps wireless transmissions as well as 80 MHz channel bandwidth.

Rugged and Weatherproof

This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor and outdoor operation. The HG2458-14DP-3NF antenna is supplied with a tilt and swivel mast mount kit. This allows quick installation at various degrees of up/down tilt for easy alignment.

Click on the Downloads tab for additional information and complete specifications.


Features
  • Dual Polarity feed system in single enclosure. Dual Band, high gain operation
  • 802.3a/b/g/n Radio Applications
  • MIMO - Multiple-Input and Multiple-Output
  • Three Independent 14 DBi Antennas, Two vertical and one horizontal elements
  • UV-resistant radome for all-weather operation

Application
  • 2.4/5.8 GHz Indoor/Outdoor Wireless LAN systems
  • Hospitality, Industrial, Municipality
  • MIMO, WISP, WiFi
  • Supports 1x2, 2x2, 2x3, 3x3 MIMO AP/Router
  • Supports IEEE 802.11 a/b/g/n and 802.11ac applications


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical/Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.8:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
