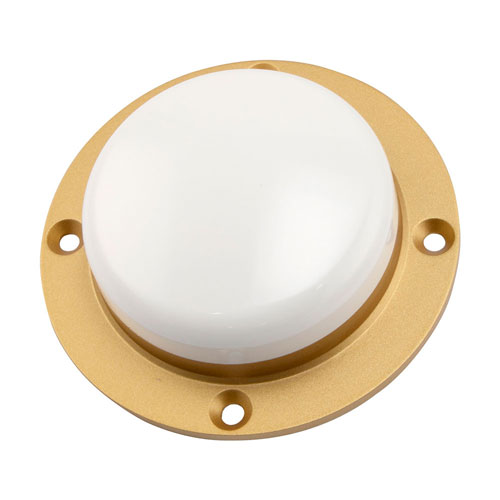

Multi Band 41dBi Aviation GPS/GNSS Antenna 1,164-1,615 MHz TNC Female Connector IP67

SKU LCANGPS1002
QTY available 34
Quantity Price
1 - 4 $860.00
5 - 9 $842.80
10 - 24 $825.60
25 + Call Us
Price $860.00

All Prices are in US Dollars and do not include duties



The LCANGPS1002 is an active GPS/GNSS multi band L1/L2/L5 antenna with 41dBi overall gain. This high precision antenna is IP67 rated, light weight and designed for Aviation. The active Aviation GPS/GNSS antenna is ideally suited for use in harsh operating environments where stability and reliability of GPS/GNSS signal is required.

This antenna operates in the 1.164-1.3GHz and 1.525-1.615GHz bands meeting GPS L1/L2/L5, GALILEO E1/E5a/E5b/E6 and GLONASS L1/L2/L3 requirements. The LCANGPS1002 antenna has an integrated LNA with 2 dB noise figure and typical LNA gain of 36 dB.

The LCANGPS1002 GPS antenna from L-com, with an axial ratio of 3 dB, can track visible satellites under extreme conditions, providing positioning solutions with accuracy for UAV navigation, autonomous tracking, or GIS surveying.

Features
  • Multi Band
  • IP67 Rated
  • 1.164-1.3GHz and 1.525-1.615GHz
  • Stable Phase Center
  • Millimeter Level Accuracy
  • TNC Female

Application
  • GPS L1/L2/L5
  • GLONASS L1/L2/L3
  • Galileo E1/E5a/E5b/E6
  • BDS B1/B2/B3
  • QZSS L1/L2/L5/L6
  • SBAS L1/L5
  • IRNSS L5
  • Unmanned Vehicles/Vessels
  • GIS Surveying
  • Autonomous Vehicles


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
GPS/GNSS
Polarization
RHCP
Minimum Frequency
1.16 GHz
Maximum Frequency
1.62 GHz
Connector Series
TNC
Connector Gender
Female
Impedance
50 Ohm
