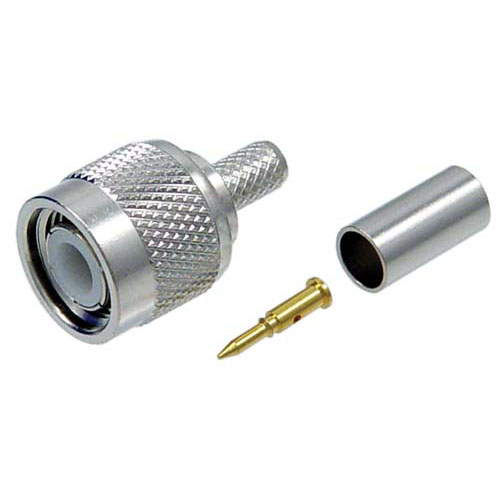

TNC Male Crimp for 200-Series Cable

SKU ATM-1204
Available to Ship 525
Quantity Price
1 - 24 $7.99
25 - 49 $7.19
50 - 99 $6.39
100 + Call Us
Price $7.99

All Prices are in US Dollars and do not include duties



This connector is a crimp style Male TNC connector made for 200-series cable. Designed for Wireless and Coaxial applications, the ATM-1204 provides superior performance while taking advantage of its gold plated contact to prevent against signal loss. This TNC Male connector is a crimp style connector. TheATM-1204 can be used with WBC-200‚ LMR®200, L-com CA-200 and Belden 7807 cable types. Buy online now!

Features
  • Can be used with WBC200‚ LMR®200, L-com CA-200, Belden 7807 cable types

Application
  • Low Loss Coax Applications
  • Radio Pigtails
  • RF Applications
  • Wi-Fi Applications
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
TNC
Connector Gender
Male
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
6 GHz
Interface Type 1
200-Series
Interface Type 2
WBC200
Interface Type 3
CA-200
Interface Type 4
Belden 7807

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
