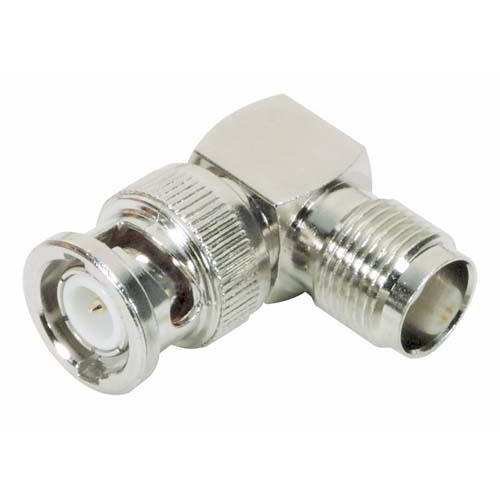

Coaxial Adapter, TNC Female Right Angle / BNC Male

SKU BA3002
QTY available 52
Quantity Price
1 - 24 $15.39
25 - 49 $14.62
50 - 99 $13.85
100 + Call Us
Price $15.39

All Prices are in US Dollars and do not include duties



This BNC Plug to TNC Jack 90 degree adapter provides the ability to connect a device with a BNC Jack to a device with a TNC Plug . This type of interconnection is often found in test environments where connection between interfaces of different types is needed.

Features
  • Allows interconnection between BNC and TNC interface types
  • Male to female gender combination handy for interconnecting cable interfaces
  • Nickel plated body for corrosion resistance
  • Right Angle construction useful in tight fit applications
  • Gold plated center contact for reduced signal loss

Application
  • Coaxial interface conversion
  • Coax retrofit applications
  • Coaxial extension
  • OEM coax applications


Documents and Resources

Key Specifications

Key Specifications

Connector Series 1
BNC
Connector Gender 1
Male
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
TNC
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
4 GHz
Adapter Body Style
Right Angle
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Nickel
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Nickel
