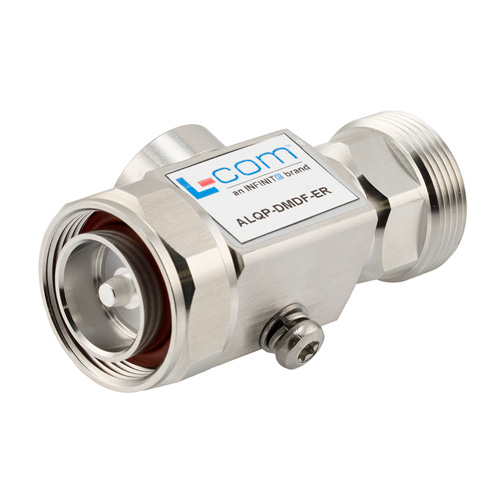

7/16 DIN M/F Quarter Wave RF Protector, 555 MHz to 4.5 GHz, Low PIM

SKU ALQP-DMDF-ER
QTY available 34
Quantity Price
1 - 9 $173.99
10 - 24 $170.51
25 - 99 $167.03
100 + Call Us
Price $173.99

All Prices are in US Dollars and do not include duties



RF surge protector (also known as lightning arrestor) ALQP-DMDF-ER from L-com utilizing a quarter wave stub design to protect critical hardware while maintaining the RF performance. This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range. L-com RF surge protector products are available in stock with same day shipping.

Features
  • Extended Range Broadband Performance from 555 to 4500 MHz
  • DC Block Topology
  • Repetitive Strike Protection
  • Low PIM

Application
  • CBRS Networks
  • Cellular
  • Distributed Antenna Systems (DAS)
  • Emergency Response Systems
  • Public Safety Systems


Documents and Resources

Key Specifications

Key Specifications

Impedance
50 Ohm
Connector In Series
7/16 DIN
Connector In Gender
Male
Connector Out Series
7/16 DIN
Connector Out Gender
Female
Minimum Frequency
555 MHz
Maximum Frequency
4.5 GHz
Maximum Input Power
200 Watts
Direction
Directional
