413 to 423 MHz Rubber Duck Antenna SMA Male

SKU LCANRBD1069
QTY available 85
Quantity Price
1 - 24 $12.19
25 - 49 $11.58
50 - 99 $10.97
100 + Call Us
Price $12.19

All Prices are in US Dollars and do not include duties

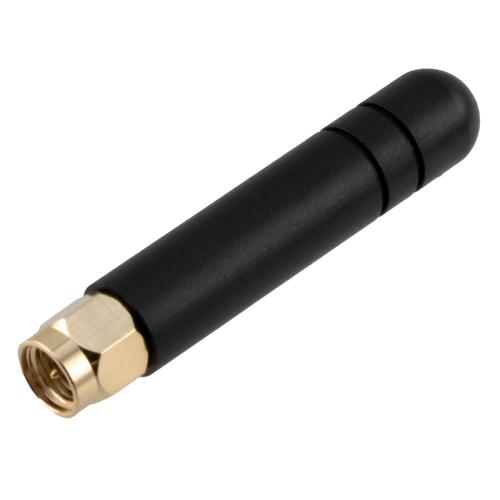

The LCANRBD1069 is a high-quality single-band rubber duck antenna witha frequency range of 413 MHz to 423 MHz. L-com’s omnidirectional rubber duck antenna is 2 inches tall and 0.37 inches wide.

The LCANRBD1069 rubber duck antenna from L-com features a SMA Male connector with an input VSWR (voltage standing wave ratio) of 2:1.

L-com’s linearly polarized antenna can operate at temperatures ranging from -40 °C to 60 °C. This single-band rubber duck antenna is offered with expert technical support, PDF datasheets, and CAD drawings with dimensions and specifications.


Features
  • 413 MHz to 423 MHz
  • SMA Male connector
  • VSWR 2:1
  • Linear polarization

Application
  • LPWAN
  • ISM
  • Weightless-P
  • Fixed and Mobile Devices


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Linear
Minimum Frequency
413 MHz
Maximum Frequency
423 MHz
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
2:1
