2.4 to 7.125 GHz Rubber Duck Antenna SMA Male Tilt Swivel

SKU LCANRBD1072
QTY available 43
Quantity Price
1 - 24 $17.19
25 - 49 $16.33
50 - 99 $15.47
100 + Call Us
Price $17.19

All Prices are in US Dollars and do not include duties

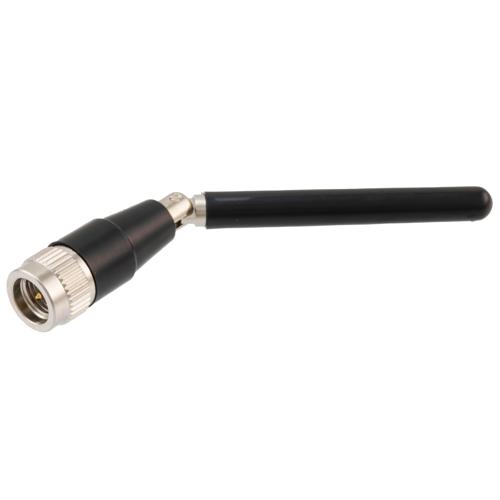

The LCANRBD1072 is a high-quality multi-band rubber duck antenna with 3 dBi nominal gain and has a frequency range of 2400 MHz to 7125 MHz. L-com’s omnidirectional tilt/swivel rubber duck antenna is 2.81 inches tall and 0.4 inches wide.

The LCANRBD1072 rubber duck antenna from L-com features a SMA Male connector with an input VSWR (voltage standing wave ratio) of 3.5:1.

L-com’s linearly polarized antenna can operate at temperatures ranging from -40 °C to 60 °C. This multi-band rubber duck antenna is offered with expert technical support, PDF datasheets, and CAD drawings with dimensions and specifications.


Features
  • 2400 MHz to 7125 MHz
  • 3 dBi Gain
  • SMA Male connector
  • Tilt/Swivel
  • VSWR 3.5:1
  • Linear polarization

Application
  • WLAN
  • WiFi 6E
  • WiFi 6
  • WiFi 5
  • WiFi 4
  • U-NII 1-4, 5-8
  • 802.11b/g/n/ac
  • Fixed and Mobile Devices


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Linear
Minimum Frequency
2.4 GHz
Maximum Frequency
7.13 GHz
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
3.5:1
