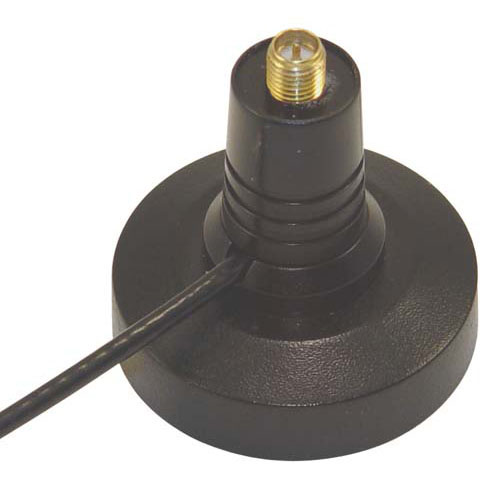

Rubber Duck Magnetic Mount with 10-foot 100 Cable RP TNC Plug

The HMA6-Series magnetic mount is well suited for use with RP-SMA Plug Rubber Duck type antennas. The magnetic base is suitable for fixing to vehicles* or other metal surfaces as well as sitting on a tabletop or shelf. The 10 ft. (3.0m) High Performance Low-Loss 100 Series cable allows the user to position the antenna away from any obstacles or interference. The cable is terminated with a RP-TNC Plug connector. Shorter cable length and custom connectors are available.

*Installation Note: This mount is not intended for use outside moving vehicles, such as on a trunk lid or roof.

Available Rubber Duck Antennas for this Mount

• HG2402RD-RSF 2.4 GHz 2.2 dBi
• HG2403RD-RSF 2.4 GHz 3 dBi
• HG2405RD-RSP 2.4 GHz 5.5 dBi
• HG2407RD-RSP 2.4 GHz 7 dBi
• HG2409RD-RSP 2.4 GHz 9 dBi
• HG2458RD-RSP 2.4 GHz to 5.8GHz 3 dBi
• HG1903RD-RSP 1.9 GHz 3 dBi
• HG3505RD-RSP 3.5 GHz 5 dBi
• HG903RD-RSP 900 MHz 3 dBi
• HG905RD-RSP 900 MHz 5 dBi
