RET/AISG 8-Pin FS1 Type Male Connector

SKU AISGM-2000
Available to Ship 359
Quantity Price
1 - 24 $37.99
25 - 49 $36.09
50 - 99 $34.19
100 + Call Us
Price $37.99

All Prices are in US Dollars and do not include duties

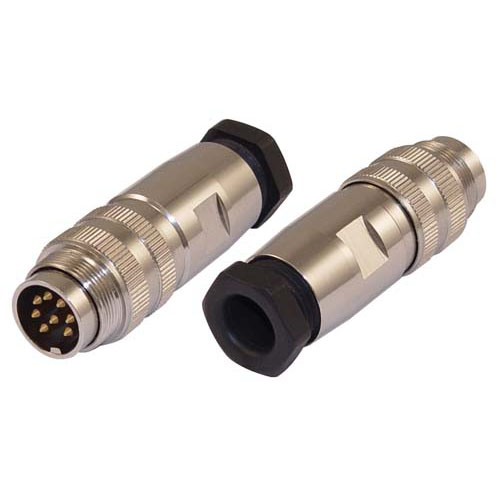

These FS1 type 8-pin male connectors dissemble to ease attachment to cable. They feature solder cup type pins and an internal clamping system that helps ensure the connector is securely attached.

Designed for use with 5-conductor, 6-conductor and 8-conductor AISG type cable. 8mm maximum cable diameter.


Features
  • Designed according to DIN 45326 standard
  • EMI protected and IP 67 rated
  • FS1 type 8-pin screw coupling male connector
  • Interchangeable with Amphenol C 901 A/B/C and Binder 423 series connectors
  • M16 locking

Application
  • 3G Remote electrical tilt (RET) antenna systems
  • Outdoor and marine applications
  • Telecommunication networks and equipment
  • AISG applications
  • Industrial controls


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
