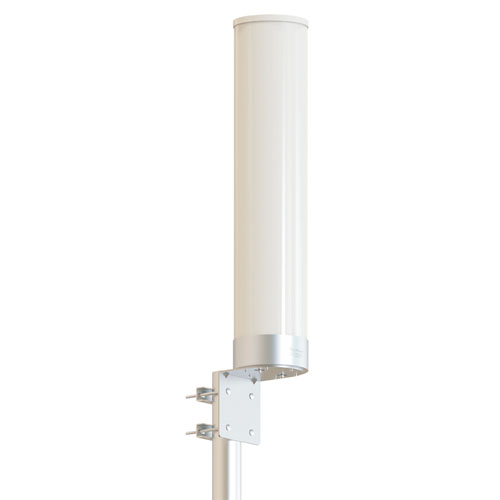

800/900 MHz 10 dBi Dual Slant Polarization Omni antenna N-female

SKU HG9010DPU
Available to Ship 1
Quantity Price
1 - 4 $1,260.00
5 - 9 $1,209.60
10 - 24 $1,159.20
25 + Call Us
Price $1,260.00

All Prices are in US Dollars and do not include duties



Dual-port omnidirectional antenna for 900 MHz point to multipoint applications. This antenna provides high performance for a variety of wireless applications in the 900 MHz band incuding WLAN, WPLAN, IoT, M2M and cellular.

Features
  • 1 degree electrical down tilt
  • Dual slant polarization (±45°)
  • Heavy duty steel mounting bracket
  • High gain (10 dBi) 900 MHz dual port omni
  • Integral N-female connectors

Application
  • Oudoor installations
  • Point-to-multipoint
  • WLAN, LPLAN, SCADA, IoT, M2M, cellular, MIMO


Product Resources

Key Specifications

Key Specifications

Polarization
Vertical/Horizontal
Minimum Frequency
824 MHz
Maximum Frequency
928 MHz
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.7:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available
