5.8 GHz 11 dBi Flat Patch Antenna - SMA-Female Connector

SKU HG5811P
QTY available 48
Quantity Price
1 - 24 $119.99
25 - 49 $107.99
50 - 99 $95.99
100 + Call Us
Price $119.99

All Prices are in US Dollars and do not include duties

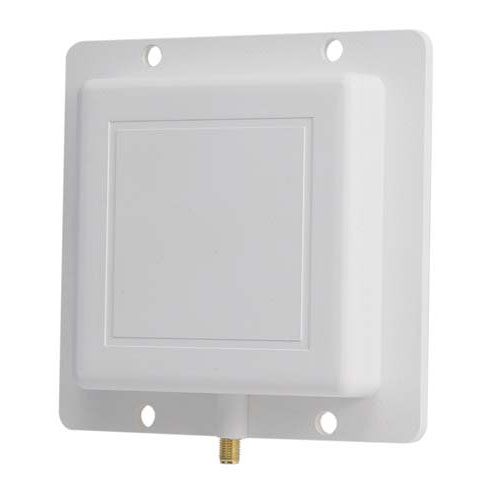

This low cost and compact flat patch WiFi antenna is ideal for 5.8GHz UNII & ISM Band applications. The antenna measures 4.5" square and combines 8 dBi or 11 dBi gain with broad coverage. It is suitable for both indoor and outdoor applications. This antenna can be oriented for either vertical or horizontal polarization.

Rugged and Weatherproof
Sealed internal elements and an aesthetic UV-stable, UL flame rated white plastic radome help ensure many years of trouble free operation. This antenna can be wall or ceiling mounted, as well as mast-mounted using U-bolts.

Features
  • All weather operation
  • Can be installed for either vertical or horizontal polarization
  • Compact Size
  • Light weight
  • Superior performance

Application
  • 5.8GHz ISM applications
  • WiFi
  • Wireless Video Systems
  • 5.8GHz UNII applications
  • 5.8GHz Wireless LAN systems


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
