5.1 GHz to 5.8 GHz 8 dB Broadband Patch Antenna - SMA Female Connector

SKU HG5158P
Available to Ship Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:

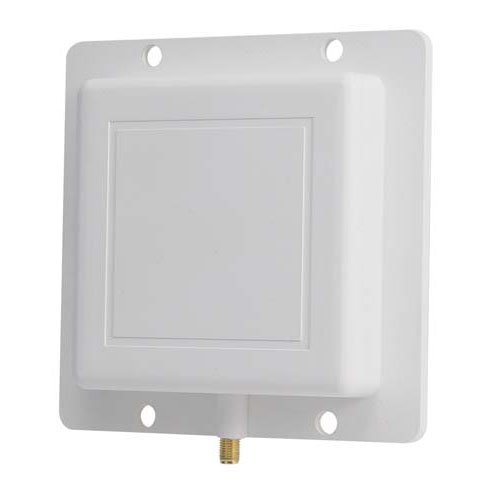

The HyperGain Model HG5158P is a high performance broadband flat patch antenna designed to operate from 5.1 GHz to 5.9 GHz (5100-5900 MHz). The Wideband design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of in-building wireless applications where wide coverage is desired. See above for applications by frequency range. The antenna measures 4.5" square and combines 8 dBi gain with broad coverage. It is suitable for both indoor and outdoor applications and can be oriented for either vertical or horizontal polarization.

Rugged and Weatherproof

Sealed internal elements and an aesthetic UV-stable, UL flame rated white plastic radome help ensure many years of trouble free operation. This antenna can be wall or ceiling mounted, as well as mast-mounted using U-bolts.

Applications for this antenna includes:
  • 5.3 GHz, 5.4 GHz and 5.8 GHz Band Applications
  • IEEE 802.11a Wireless LAN
  • 5.8GHz UNII and ISM Applications
  • Unlicensed European 5.4 GHz Band Applications
  • WiMAX Technology
  • WiFi Systems
  • 5.8 GHz Wireless Video Systems

Features
  • Broadband operation, 8 dBi gain
  • Can be installed for either vertical or horizontal polarization
  • Durable UV-stable, UL flame rated radome
  • Flat panel design, compact size, light weight & all weather operation
  • Integral SMA-Female connector

Application
  • 5.3 GHz, 5.4 GHz and 5.8 GHz Band Applications
  • IEEE 802.11a Wireless LAN
  • Unlicensed European 5.4 GHz Band Applications
  • WiMAX Technology
  • UNII and ISM applications


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
