4.9-5.8 GHz 25 dBi Dual Polarity/X-Polarity MIMO Dish Antenna

SKU HG4958DP-25D
Available to Ship 25
Quantity Price
1 - 9 $233.99
10 - 24 $215.27
25 - 99 $196.55
100 + Call Us
Price $233.99

All Prices are in US Dollars and do not include duties

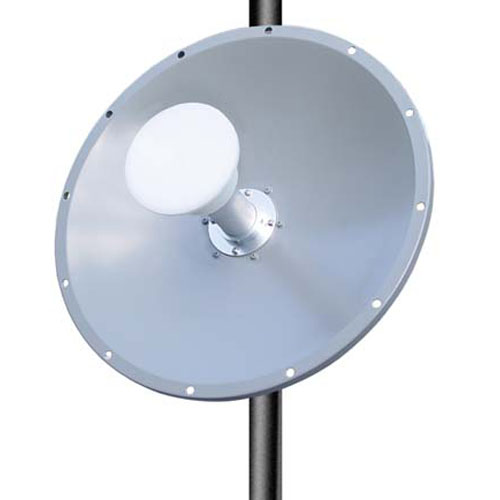

The HyperLink model HG4958DP-25D is a high performance broadband dual polarized solid dish antenna. Because of its' superb electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of high performance 4.9 GHz and 5 GHz range (5.1/5.3/5.4/5.8 GHz) wireless applications. The wide band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications. This antenna features 25 dBi of gain with a 7° horizontal beam-width and vertical beam-width.

Adjustable Dual Polarity Feed Horn System

The HG4958DP-25D features an adjustable dual polarity feed horn system which allows the antenna to be configured for Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°). It is fed via two N-Female connectors, one for each polarized signals. This feature makes it ideal for MIMO/802.11n and polarization diversity systems.

Rugged and Weatherproof

The reflector dish of the HG4958DP-25D is constructed from high quality aluminum which gives it superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. The small diameter of the dish helps minimize wind loading.

The HG4958DP-25D is supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 30°.

For additional information and complete specifications, click on Data Sheet link in the Downloads sections.


Features
  • (2) N-Female connectors
  • Aluminum reflector dish with UV stable light gray polymer finish
  • Includes tilt and swivel mast mount kit
  • Adjustable dual polarity feed horn system allows the antenna to be configured for Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°)
  • Optional radome cover kits available

Application
  • 5.1/5.3/5.4/5.8 GHz ISM and UNII Band Applications
  • Long Distance Backhaul and Point to Point Data Links
  • MIMO and 802.11 n Applications
  • WiMAX Applications
  • 4.9 GHz Public Safety Band


Product Resources

Key Specifications

Key Specifications

Antenna Type
Dish
Polarization
H/V or 45 Deg. Slant
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
