2.4 GHz Compact 3 dBi Ceiling Mount Omni Antenna

SKU HG2403CU
QTY available 89
Quantity Price
1 - 24 $84.99
25 - 49 $76.49
50 - 99 $67.99
100 + Call Us
Price $84.99

All Prices are in US Dollars and do not include duties



This very compact high performance 2.4 GHz ceiling-mount omnidirectional WiFi antenna provides broad coverage and 3 dBi gain. It is ideally suited for IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth®, public wireless hotspot applications and other in-building applications where wide coverage is desired.

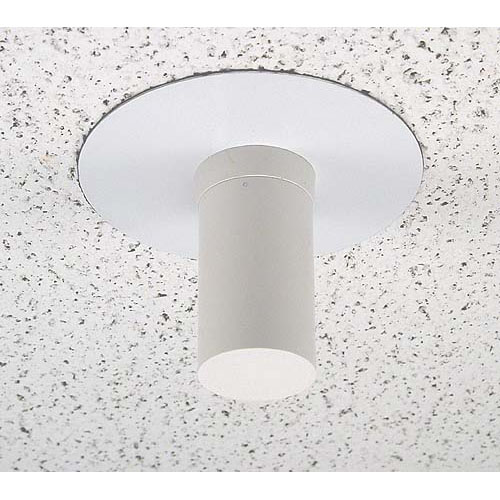

This omni antenna is only 2.5" long and features an aesthetic white ABS plastic radome. It is typically ceiling-mounted through a single hole in a standard suspended ceiling tile using the included mounting hardware. Because of its near-invisible design this RF antenna is ideal for use in office environments and public buildings where durability and aesthetics are important.


Features
  • Easy to mount
  • Compact size, only 2.5" long
  • Near-invisible design

Application
  • 2.4 GHz ISM Band
  • Distributed Antenna Systems, DAS
  • IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N, MIMO) Applications
  • WiFi & Wireless Video Systems
  • Bluetooth® & Public Wireless Hotspot


Product Resources

Key Specifications

Key Specifications

Antenna Type
Ceiling
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
