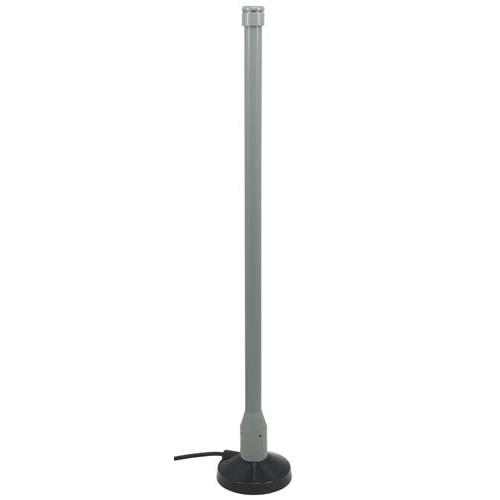

2.4 GHz 8.5 dBi Omni Antenna w/ Magnetic Mount - 10ft N-Female Connector

SKU HG2409MGU-NF
Available to Ship 3
Quantity Price
1 - 9 $161.99
10 - 24 $155.51
25 - 99 $149.03
100 + Call Us
Price $161.99

All Prices are in US Dollars and do not include duties



These high performance 9 dBi omnidirectional antennas feature a magnetic mount base with 10 ft. coax lead. They are ideally suited for multipoint and mobile applications where high gain and wide coverage is desired.

Features
  • Double the range of "rubber duck" antennas
  • Durable UV-stable fiberglass radome
  • Compact, lightweight design
  • Magnetic base with 10 ft. coax lead
  • Vented end cap and drain holes in base

Application
  • 2.4 GHz ISM Band & 2.36 GHz CDMA Band
  • Bluetooth®, Public Wireless Hotspot and WiFi
  • IEEE 802.11b/g/n
  • Wireless Video Systems & Multipoint and Mobile Applications


Product Resources

Key Specifications

Key Specifications

Antenna Type
Omni
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
2:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
