2.4 GHz 8 dBi Radome Enclosed Omni Antenna w/ Magnetic Mount - RP-TNC Plug Connector

Item # HG2408MGUR-RTP
Availability
Available Quantity: 556
Price Table
Quantity Price
1 - 9 $139.51
10 - 24 $131.14
25 - 99 $122.77
100 + Call Us
Add to Cart

Description

The HyperLink HG2408UR-NM is a high performance Omni-directional elevated feed antenna designed for the 2.4 GHz ISM band. This compact and lightweight antenna is ideally suited for IEEE 802.11b and 802.11g wireless LANs, public wireless hotspots, Bluetooth® and other multipoint and mobile applications where high gain and wide coverage is desired. This antenna features a co-linear stacked design with an elevated feed point. This allows the antenna to operate using a very small ground plane.

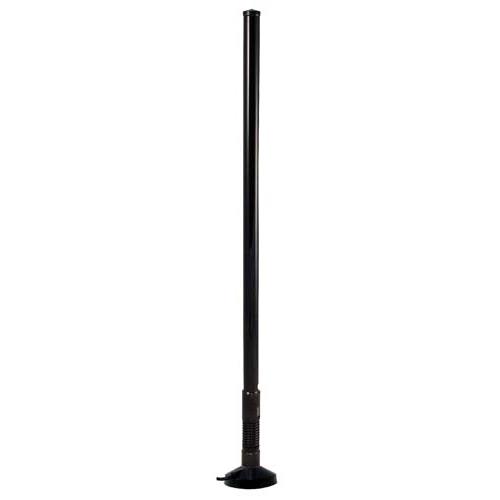

Measuring 17.5" long, this antenna features an aesthetic black finish. It features a built-in shock spring and is designed with a standard N-Male coupled with a magnetic mounting system and 10 feet of high performance low-loss 195-Series cable terminated with a Reverse Polarity TNC Plug connector.

For additional information and complete specifications, click on the data sheet link in the Downloads tab.


Features
  • Available in white or black radome
  • Magnetic base with 10 foot, high performance low-loss 195-series cable
  • Radome Enclosed, ideal for outdoor use
Application
  • IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
  • Wireless Video Systems & Multipoint and Mobile Applications
  • 2.4 GHz ISM Band
  • Bluetooth® & WiFi
