2.4 GHz 11 dBi Mast Mount Mini Panel Antenna - N-Female Connector

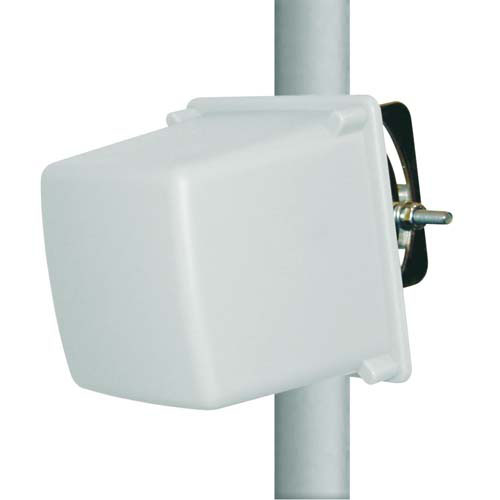

  • Picture of 2.4 GHz 11 dBi Mast Mount Mini Panel Antenna - N-Female Connector
  • Picture of 2.4 GHz 11 dBi Mast Mount Mini Panel Antenna - N-Female Connector
  • Picture of 2.4 GHz 11 dBi Mast Mount Mini Panel Antenna - N-Female Connector
Picture of 2.4 GHz 11 dBi Mast Mount Mini Panel Antenna - N-Female Connector
SKU HG2412P
Available to Ship 113
Quantity Price
1 - 24 $79.99
25 - 49 $71.99
50 - 99 $63.99
100 + Call Us
Price $79.99

All Prices are in US Dollars and do not include duties



The HyperGain HG2412P series of high performance directional Mini Panel Antennas are suitable for indoor and outdoor applications in the 2.4GHz ISM band.

Features
  • All weather operation, Compact size, 4" x 4" x 4"
  • DC Ground lightning protecting
  • Durable UV-stable white ABS radome
  • Integral N-Female connector
  • Can be installed for either vertical or horizontal polarization

Application
  • Bluetooth® & Public Wireless Hotspot
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g Wireless LAN
  • IEEE 802.11n (Pre-N, Draft-N, MIMO) Applications
  • WiFi & Wireless Video Systems


Product Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
