1.9 GHz 3 dBi Rubber Duck Omni Mag/Base Antenna - SMA Male Connector

SKU HG1903MGRD-SM
QTY available 18
Quantity Price
1 - 24 $53.99
25 - 49 $51.83
50 - 99 $50.21
100 + Call Us
Price $53.99

All Prices are in US Dollars and do not include duties

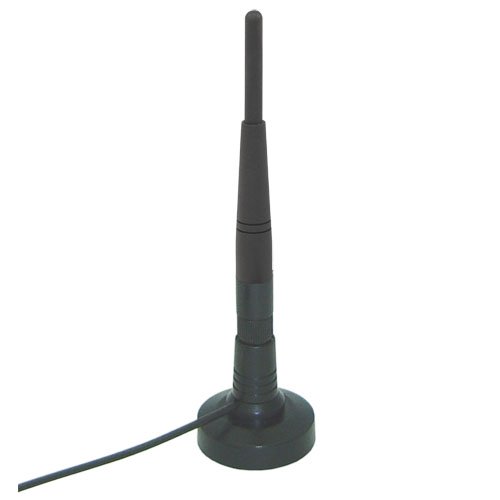

This compact 1.9GHz omnidirectional "rubber-duck" antenna provides broad coverage and 3 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for Personal Communication Services (PCS) cellular radio wireless applications where omni-directional coverage and low visibility are desired. The compact size of this antenna is ideal where omni-directional coverage and low visibility are desired. Mobile applications including service vehicles, public transportation, law enforcement, mining and construction vehicles, as well a numerous other commercial and industrial applications where mobility is required.

This antenna includes a magnetic base suitable for fixing to vehicles* or other metal surfaces as well as sitting on a tabletop or shelf. The 5 ft. (1.5m) High Performance Low-Loss 100 Series cable allows the user to position the antenna away from any obstacles or interference.

*Installation Note: This mount is not intended for use outside moving vehicles, such as on a trunk lid or roof.

Optional Connectors can be ordered. Contact Hyperlink sales for more information.

Features
  • Antenna features tilt and swivel design
  • Compact size, only 6.7 " long
  • Flexible "Rubber Duck" antenna with SMA Male Connector
  • Magnetic base with 5 ft. high performance low-loss 100-series cable

Application
  • Mobile applications
  • PCS cellular radio applications
  • 1.9 GHz band applications
  • GPRS/EDGE or CSD, (WAN) connections on GSM 1900 networks (Sony Ericsson® Edge PC-Card)
  • LTE

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
2:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
