1.9 GHz 11 dBi Omnidirectional Antenna

  • Picture of 1.9 GHz 11 dBi Omnidirectional Antenna
  • Picture of 1.9 GHz 11 dBi Omnidirectional Antenna

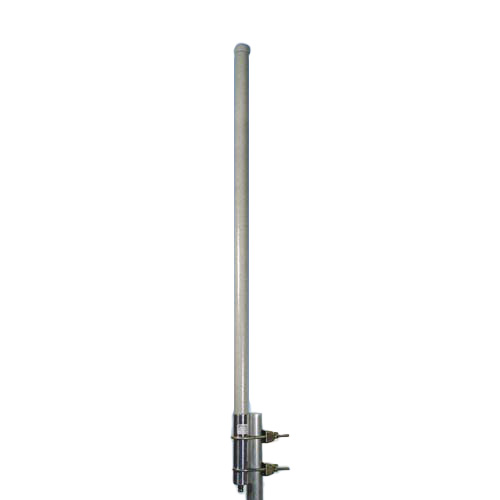

Picture of 1.9 GHz 11 dBi Omnidirectional Antenna
SKU HG1911U-PRO
Available to Ship 48
Quantity Price
1 - 9 $175.99
10 - 24 $161.91
25 - 99 $147.83
100 + Call Us
Price $175.99

All Prices are in US Dollars and do not include duties



The HyperGain HG1911U-PRO is a high performance omnidirectional antenna designed for the 1900 MHz band. It is ideally suited for multipoint Personal Communication Services (PCS) and 1.9GHz cellular band applications where high gain and wide coverage is desired.

This antenna features an integral N-Female type connector that mounts through the wall of an equipment enclosure. Included with the HG1911U-PRO is a dual u-bolt mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0" in diameter.

This omni antenna’s construction features a rugged 1.52" diameter white fiberglass radome for durability, aesthetics and long service life. It is designed for all weather operation.

This antenna is also available in a 5-pack, HG1911U-PRO-5PK.


Features
  • All weather operation
  • Lightweight fiberglass radome
  • Solid brass elements
  • Superior performance
  • Rugged industrial grade design

Application
  • Personal Communication Service (PCS)
  • 1.9 GHz band applications
  • Cellular
  • LTE
  • Multipoint applications


Product Resources

Key Specifications

Key Specifications

Antenna Type
Omni
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available
