USB 3.0 Adapter Coupler Panel Mount, ECF Flange Style Type 2 Kit, A Type Female Jack to A Type Female Jack, Stainless Steel Shielded

SKU ECFU3KEY-AA-S
QTY available 1366
Quantity Price
1 - 24 $24.19
25 - 49 $22.98
50 - 99 $21.77
100 + Call Us
Price $24.19

All Prices are in US Dollars and do not include duties



In stock and shipping same day, L-com's USB 3.0 ECFU3KEY-AA-S adapter/coupler allows USB cables to be efficiently passed through a patch panel, wall plate or enclosure using L-com's efficient ECF style flange mount design. These USB coupler solutions are engineered to bring high performance in a compact design.

The ECFU3KEY-AA-S is an in-line, silver adapter with an A type female to an A type female with a shielded, stainless steel plated ABS housing. It is rated for USB 3.0 usage. 3.0 coupler/adapter options include A to A, A to B, B to A and C to C. Additional A to A, A to B, B to A, C to A and A to C options are available with a USB 2.0 rating. The steel plated design electrically connects the connector shells and ground to the housing's plating and is excellent for applications that require grounding your adapter/coupler to your rack, wall-plate, patch panel or enclosure. The ECF frame allows for mounting in virtually any panel thickness and the mounting screws create a secure mount.

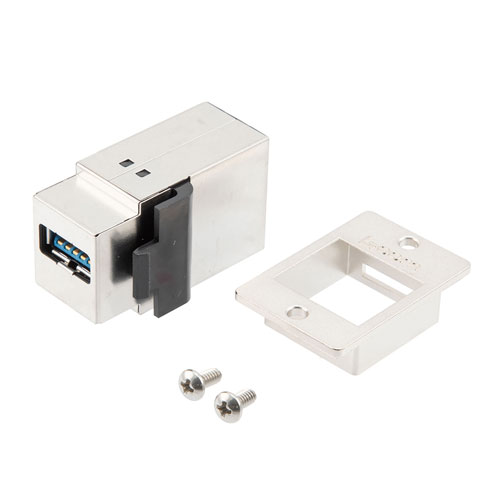

L-com's ECFU3KEY style products securely mount via 4-40 screws. Sold as a kit, each ECFU3KEY part comes with a female/female adapter coupler, a metal mounting flange and 2x 4-40 screws mounting. Contact L-com's expert technical support with your USB 3.0 questions and order online today.

Features
  • Allows USB 3.0 cables to be passed through panels, enclosures and wall plates
  • Type 2 Flange kit includes a keystone style, snap-in coupler adapter, a metal mounting frame and 2x 4-40 machine screws for secure installation
  • Metal shell provides maximum protection from EMI/RFI
  • 30 microinch gold plated contacts provide reliable connections with repeated mating cycles
  • USB 3.0 rated connectors are USB Type A female jack on the front to USB Type A female jack on the back

Application
  • PC peripheral interconnects and computing
  • Data acquisition and storage
  • Test and measurement
  • Video and data transfer
  • Printers and servers
