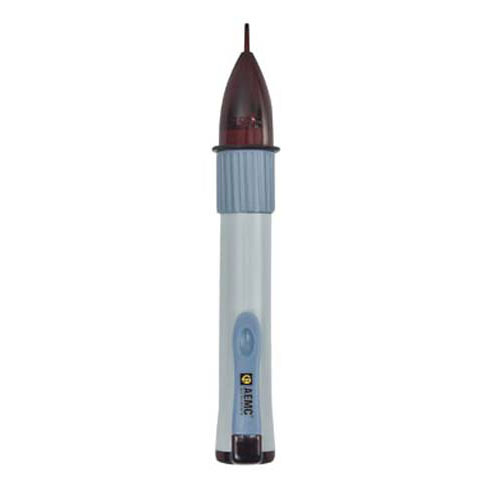

Non-Contact AC Voltage Detector Model NC-1

SKU AEMC-NC1
Available to Ship Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


The Model NC-1 Non-Contact AC Voltage Detector measures the presence of AC Voltage from 100 to 240VAC. To use you merely touch the probe tip near the jacket of a cable or wire to determine if there is voltage present. You can also insert the tip into an outlet hole itself.
The LED light and audible warning provide a safe quick and easy way to confirm the presence of voltage in a circuit. The battery provides approximately 5 hours of continuous operation

Features
  • Battery: 2x 1.5V AAA (included)
  • Detection Distance: <5mm
  • Safety: For indoor use and in accordance with overvoltage 600V Cat. III, Pollution Degree 2
  • Frequency: 50/60Hz
  • Voltage Sensitivity: 100 to 240VAC; Over Voltage: 600V Cat. III


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
