Type N F/M In/Out RF Surge Protector 2GHz - 6GHz DC Block 10W IP67 10kA Surge Filter

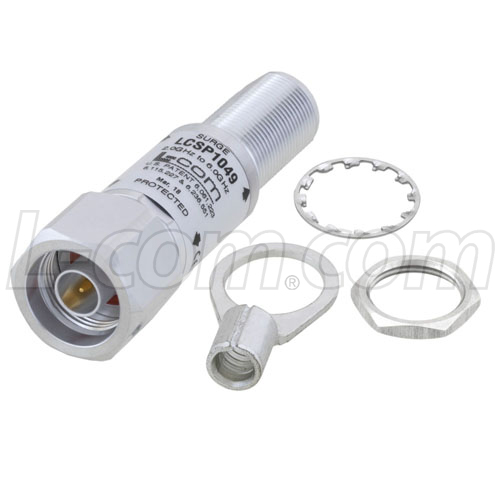

  • Picture of Type N F/M In/Out RF Surge Protector 2GHz - 6GHz DC Block 10W IP67 10kA Surge Filter
Picture of Type N F/M In/Out RF Surge Protector 2GHz - 6GHz DC Block 10W IP67 10kA Surge Filter
SKU LCSP1049
Available to Ship Call us
Quantity Price
1 - 24 $117.99
25 - 49 $112.09
50 - 99 $106.19
100 + Call Us
Price $117.99

All Prices are in US Dollars and do not include duties



RF surge protector (also known as lightning arrester) LCSP1049 from L-com utilizing a patented DC shorted filter design enables an almost instantaneous response to a lightning surge to protect critical hardware while maintaining the RF performance targeting for WiFi applications. This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range and available in stock with same day shipping.

Features
  • DC Block
  • Multi-strike capability
  • VSWR <1.2
  • 10W Max RF Power
  • Waterproof IP67 rated

Application
  • WiFi
  • Cellular communication systems


Product Resources

Key Specifications

Key Specifications

Impedance
50 Ohm
Connector In Series
N
Connector In Gender
Female
Connector Out Series
N
Connector Out Gender
Male
Minimum Frequency
2 GHz
Maximum Frequency
6 GHz
Maximum Input Power
10 Watts
Direction
Directional
Throughput Energy
0.5 uJ

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
