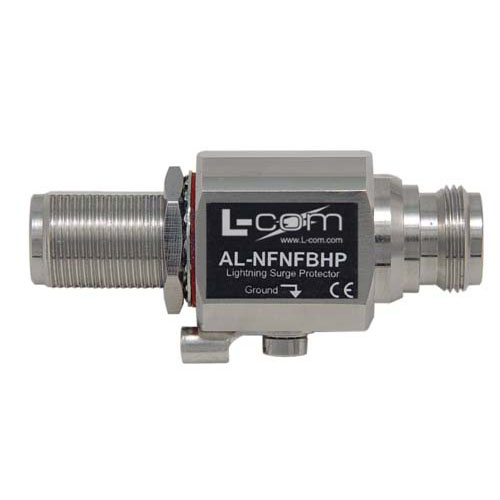

N-Female to N-Female Bulkhead 0-3 GHz 90V High Performance Lightning Protector

  • Picture of N-Female to N-Female Bulkhead 0-3 GHz 90V High Performance Lightning Protector
  • Picture of N-Female to N-Female Bulkhead 0-3 GHz 90V High Performance Lightning Protector
Picture of N-Female to N-Female Bulkhead 0-3 GHz 90V High Performance Lightning Protector
SKU AL-NFNFBHP-9
Available to Ship 685
Quantity Price
1 - 24 $57.99
25 - 49 $52.19
50 - 99 $46.39
100 + Call Us
Price $57.99

All Prices are in US Dollars and do not include duties



The AL-NFNFBHP-9 is a very high-performance high power gas discharge tube suppressor featuring operation up to 3 GHz. The design of this protector provides outstanding performance and reliability due to its internal components. A circular brass contact inside the AL-NFNFBHP ensures the gas tube is firmly seated as well as providing a better contact point for the gas tube. Most coaxial protectors are designed with only a thin pin that the gas tube sits on.

Both connector ports of this unit are equally protected. This provides protection no matter which way it is installed. Either port can face the antenna and either port can face the equipment. A ground lug and terminal are provided directly on the lightning protector housing which provides superior grounding.

This unit features a bulkhead N-Female connector with a rubber "O" Ring seal for mounting through an enclosure wall. An optional stainless steel mounting bracket, HGX-LPMOUNT01 is also available.

Note: The AL-NFNFBHP is for indoor use only

Features
  • Multi-Strike Capability
  • Reliable Performance from DC ~ 3 GHz
  • Bi-Directional Protection
  • Easily Replaced Gas Tube Element
  • Protector will pass DC

Application
  • Amateur radio applications
  • Cellular applications
  • IEEE 802.11b/g Wireless LAN applications
  • MMDS
  • Note: The AL-NFNFBHP is for indoor use only


Product Resources

Key Specifications

Key Specifications

Impedance
50 Ohm
Connector In Series
N
Connector In Gender
Female
Connector Out Series
N
Connector Out Gender
Female
Minimum Frequency
DC
Maximum Frequency
3 GHz

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available
