  3. Indoor 4-Port 10/100/1000 Base-T Gas Tube CAT6 Lightning Protector - RJ45 Jacks

Indoor 4-Port 10/100/1000 Base-T Gas Tube CAT6 Lightning Protector - RJ45 Jacks

SKU CMSP-CAT6T-4
Available to Ship 150
Quantity Price
1 - 9 $297.99
10 - 24 $274.15
25 - 99 $250.31
100 + Call Us
Price $297.99

All Prices are in US Dollars and do not include duties



The CMSP-CAT6T-4 lightning and surge protector provides superior lightning and surge protection for up to four lines with improved frequency response for indoor 10/100/1000 Ethernet networks. The unit has low line to line and line to ground capacitance to minimize distortion of high-speed signals. This design provides protection for both common and differential mode surges. The CMSP-CAT6T-4 utilizes gas discharge tubes on each pair for superior power handling capability.

This protector is compatible with 802.3af/at Power-over-Ethernet (PoE) devices. It supports both PoE mode A and B for power.

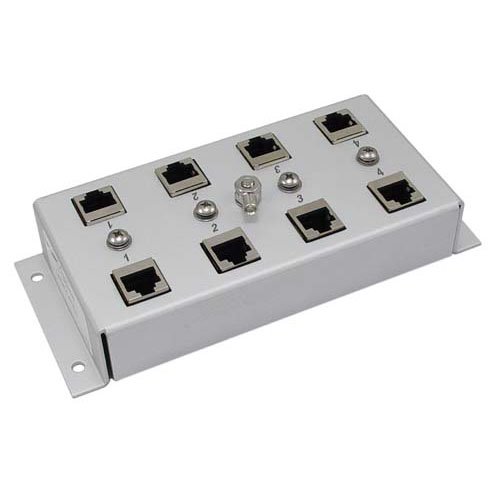

The CMSP-CAT6T-4 features eight shielded RJ-45 jacks for ease of installation. The rugged aluminum chassis can be wall or shelf mounted. Mounting holes are provided on the unit.

This protector is also available in a 2-port version, L-com part number CMSP-CAT6T-2.

For additional information and complete specifications, click the Data Sheet link in the Downloads tab.


Features
  • CAT5, CAT5e and CAT6 compatibility
  • Field replaceable modules
  • PoE compatible
  • Protects up to 4 Ethernet lines
  • Reliable differential gas tube protection

Application
  • 10/100/1000 Base-T Gigabit Ethernet Equipment
  • CCTV IP Cameras with PoE
  • Wireless Access Points & Bridges
  • Wireless Client Adapters


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
