Description
The CMSP-CAT6T-2 lightning and surge protector provides superior lightning and surge protection for up to two lines with improved frequency response for indoor 10/100/1000 Ethernet networks. The unit has low line to line and line to ground capacitance to minimize distortion of high-speed signals. This design provides protection for both common and differential mode surges. The CMSP-CAT6T-2 utilizes gas discharge tubes on each pair for superior power handling capability.
This protector is compatible with 802.3af/at Power-over-Ethernet (PoE) devices. It supports both PoE mode A and B for power.

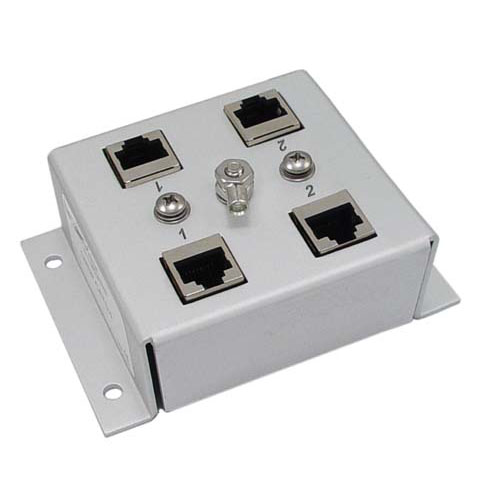

The CMSP-CAT6T-2 features four shielded RJ-45 jacks for ease of installation. The rugged aluminum chassis can be wall or shelf mounted. Mounting holes are provided on the unit.
This protector is also available in a 4-port version, L-com part number CMSP-CAT6T-4.
For additional information and complete specifications, click the Data Sheet link in the Downloads tab.
This protector is compatible with 802.3af/at Power-over-Ethernet (PoE) devices. It supports both PoE mode A and B for power.
The CMSP-CAT6T-2 features four shielded RJ-45 jacks for ease of installation. The rugged aluminum chassis can be wall or shelf mounted. Mounting holes are provided on the unit.
This protector is also available in a 4-port version, L-com part number CMSP-CAT6T-4.
For additional information and complete specifications, click the Data Sheet link in the Downloads tab.
Features
- CAT5, CAT5e and CAT6 compatibility
- Field replaceable modules
- PoE compatible
- Protects up to 2 Ethernet lines
- Reliable differential gas tube protection
Application
- Wireless Access Points & Bridges
- 10/100/1000 Base-T Gigabit Ethernet Equipment
- CCTV IP Cameras with PoE
- Wireless Client Adapters
