Data Line Protector Bulkhead Mount 10/100 PoE 48VDC

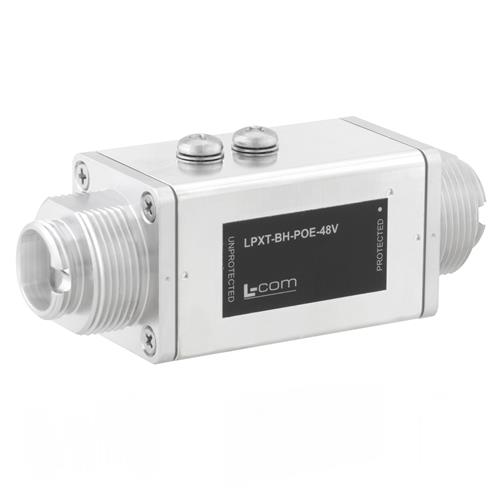

  • Picture of Data Line Protector Bulkhead Mount 10/100 PoE 48VDC
  • Picture of Data Line Protector Bulkhead Mount 10/100 PoE 48VDC
Picture of Data Line Protector Bulkhead Mount 10/100 PoE 48VDC
SKU LPXT-BH-POE-48V
Available to Ship Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


The LPXT-BH series offers outdoor data line protection designed to support Ethernet / Cat5e applications including 10/100 / PoE, GbE AND GbE / PoE. These products incorporate advantages of coordinated high-power gas discharge tube (GDT) and self gated current transistor protection in a single protector, utilizing a weather sealed housing and RJ-45 connection interface.

Features
  • Bulkhead mount design
  • In-Line Protection for 10/100 & Gigabit 1000 Mb/s PoE Ethernet data lines
  • High-power gas discharge tube (GDT)
  • Protected Pairs (1/2), (4/5), (3/6) and (7,8)
  • Self gated current transistor protection

Application
  • IP Surveillance Cameras
  • VoIP (Voice over Internet Protocol) Telephones
  • Wired Switches
  • Wireless LAN Access Points and Bridges


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
