4.3-10 F/F Bulkhead Coaxial RF Surge Protector, 698MHz - 2.7GHz, DC Pass, Low PIM -173dBc

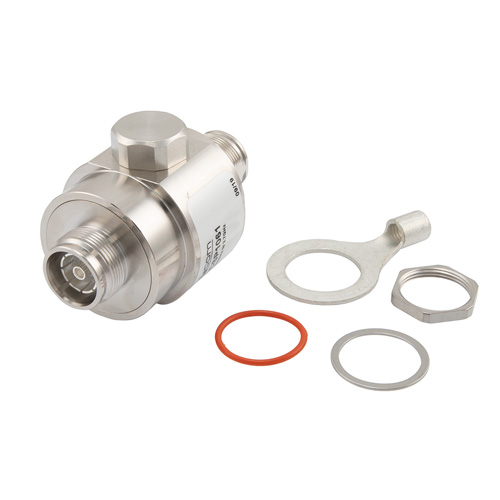

  • Picture of 4.3-10 F/F Bulkhead Coaxial RF Surge Protector, 698MHz - 2.7GHz, DC Pass, Low PIM -173dBc
Picture of 4.3-10 F/F Bulkhead Coaxial RF Surge Protector, 698MHz - 2.7GHz, DC Pass, Low PIM -173dBc
SKU LCSP1061
Available to Ship 42
Quantity Price
1 - 9 $219.99
10 - 24 $211.19
25 - 99 $202.39
100 + Call Us
Price $219.99

All Prices are in US Dollars and do not include duties



L-com's LCSP1000s series of surge arrestors use a patented surge filter design. The almost instantaneous response to a lightning surge minimizes energy let-through and protects critical wireless equipment. Models available with ultra-low PIM performance and DC Pass (AISG) capability, used in 4G and 5G applications.

Features
  • 40kA Lightning Rating for RF, 20kA Lightning Rating for DC.
  • Low PIM Performance, VSWR <1.12, Low Insertion Loss.
  • Waterproof IP67 rated
  • DC Pass Topology.
  • Frequency range from 698MHz to 2.7GHz.

Application
  • Public safety systems
  • Cellular communication systems
  • Emergency response systems
  • Industrial

Key Specifications

Key Specifications

Impedance
50 Ohm
Connector In Series
4.3-10
Connector In Gender
Female
Connector Out Series
4.3-10
Connector Out Gender
Female
Minimum Frequency
698 MHz
Maximum Frequency
2.7 GHz
Maximum Input Power
500 Watts
Direction
Bi-Directional
Throughput Energy
1,000 uJ

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
