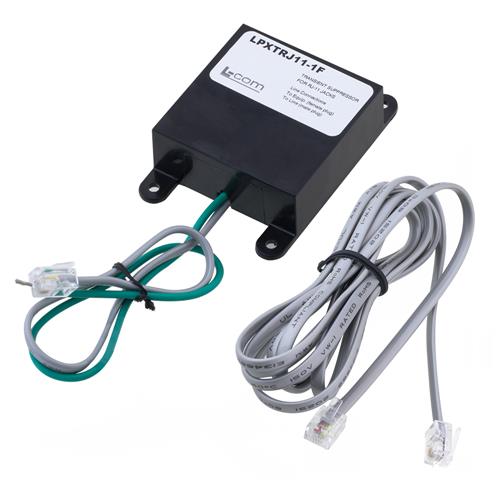

160Vdc Data Line Protector RJ11 M/F 1Ft

SKU LPXTRJ11-1F
QTY available Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


The LPXTRJ11-1F surge suppressor is a high-current, solid-state device designed to protect equipment from transient over-voltages on telephone lines with RJ-11 connectors using pins 3 and 4. It performs this function by limiting the magnitude of transient over-voltages that are present on the pair relative to each other and from each relative to ground. Continuous bi-polar, bi-directional, non-interrupting protection is provided. The LPXTRJ11-1F utilizes silicon junction avalanche suppressor diodes as its sole suppression technology and automatically resets after each suppression function with no degradation of protection capabilities.

The LPXTRJ11-1F attaches in series with the load to be protected. It is also equipped with a 12" wire for the purpose of attaching the device to the system GND (required for proper suppression).

Features
  • Includes 1ft 20 AWG Ground wire
  • In-Line Protection for POTS (Plain Old Telephone Service) lines
  • Integral mounting feet
  • Includes 1ft cord with RJ11 Plug.

Application
  • Traditional Analog phone lines
  • DSL


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
