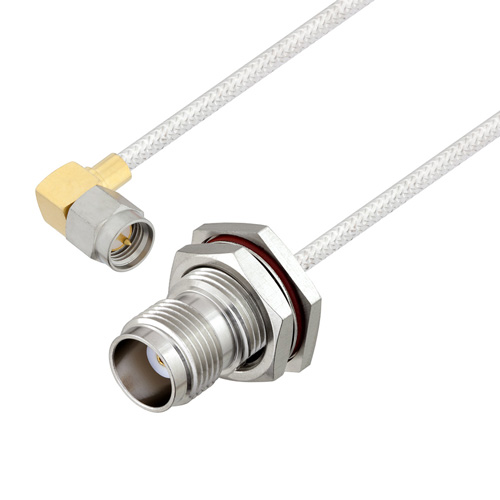

Precision SMA Male Right Angle to TNC Female Bulkhead Semi-Flexible Cable Assembly using LC085TB Coax, 10 FT , LF Solder

SKU LCCA30561-FT10
Available to Ship 3
Quantity Price
1 - 9 $127.99
10 - 24 $122.87
25 - 99 $117.75
100 + Call Us
Price $127.99

All Prices are in US Dollars and do not include duties




SMA LCCA30561 cable assembly is part the RF industry's largest inventory of in-stock standard cable and same-day-built custom cable assembly products. This Pasternack SMA to TNC cable assembly is a coaxial design. Our SMA male to TNC female cable assembly is precision manufactured to RF industry specifications.


Pasternack's SMA to TNC precision assembly uses a formable cable. LCCA30561 50 Ohm SMA to 50 Ohm TNC cable assembly is manufactured with 50 Ohm LC085TB type coax. SMA right angle to TNC straight coaxial cable assembly uses 90 degree right angle coax cable connectors.


Our LCCA30561 RF cable assembly is shipped from Pasternack's ISO 9001:2008 facility in Irvine, CA the same day as purchased. This SMA to TNC coaxial cable assembly is part of over 35,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.


Features
  • Max Frequency 6 GHz
  • Shielding Effectivity > 100dB
  • PTFE Dielectric with 69.5% VoP
  • Hand Formable
  • Tin Filled Copper Composite Braid Outer Conductor

Application
  • General Purpose
  • Laboratory Use
  • System Interconnect


Product Resources

Key Specifications

Key Specifications

Connector 1 Series
SMA
Connector 1 Gender
Male
Connector 1 Polarity
Standard
Connector Angle 1
Right Angle
Connector 1 Impedance
50 Ohm
Connector 2 Series
TNC
Connector 2 Gender
Female
Connector 2 Polarity
Standard
Connector Angle 2
Straight
Connector Mount Method 2
Bulkhead
Connector 2 Impedance
50 Ohm
Connector 1 Body Material
Brass
Connector 1 Body Plating
Gold
RF Cable Part Number
LC085TB
RF Cable Type
LC085TB
RF Cable Impedance
50 Ohm

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
