Desktop PoE Injector/Midspan w/ Integral Power Supply, 48VDC @ 20 Watt

SKU PS4820-POE-1
Available to Ship Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:

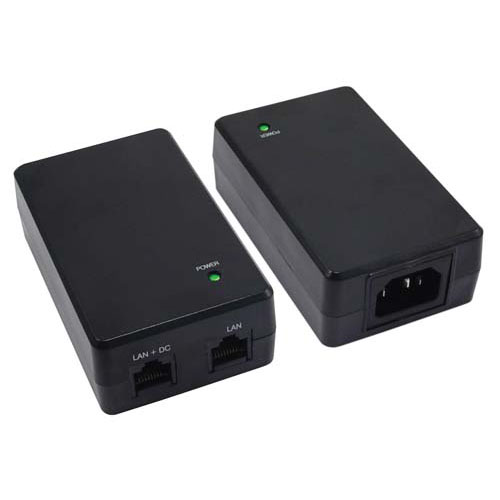

The PS4820-POE-1 is a Power-over-Ethernet (PoE) Injector/Midspan with integral 48 Volt, 20 Watt power supply. It provides DC power for one PoE-equipped device by "Injecting" DC power through the CAT5 ethernet cable. It is compatible with AP's and other equipment supporting the IEEE standard PoE pinout (Pins 4&5 Power + / Pins 7&8 Power -).

Since the PS4820-POE-1 is completely self-contained, a separate power supply and injector is not required. The PS4820-POE-1 features an impact resistant polycarbonate enclosure and includes a 3-prong detachable power cord.

See data sheet below for more information and specifications.


Features
  • 100-250 VAC Input
  • Dual RJ45 Jacks
  • Integral 48VDC @ 20W Power Supply
  • PoE Injector and Power Supply in one unit
  • Regulated output with low ripple

Application
  • Bluetooth® Access Points
  • Wireless LAN Access Points and Bridges
  • Wireless LAN WiFi Amplifiers and Amplified Antennas
  • IP Surveillance Cameras
  • VoIP (Voice over Internet Protocol) Telephones
