  2. Passive CWDM, Field Unit Barrel OADM, 1 Channel 20nm 1570nm, 2m 250um colored bare fiber, Pass Port

Passive CWDM, Field Unit Barrel OADM, 1 Channel 20nm 1570nm, 2m 250um colored bare fiber, Pass Port

SKU PCW5A-01357-24N3
Available to Ship 4
Quantity Price
1 - 24 $58.99
25 - 49 $56.63
50 - 99 $54.86
100 + Call Us
Price $58.99

All Prices are in US Dollars and do not include duties

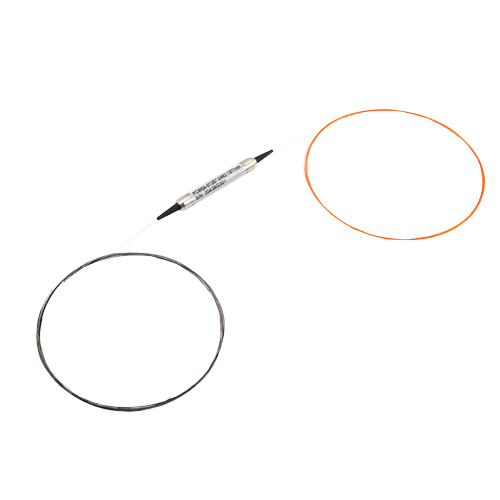

The L-COM PCW5A-01357-24N3 is a CWDM Passive Filter with 1 Channel OADM. The L-COM PCW5A-01357-24N3 is a 34x5.5mm barrel filter with add a single channel to a composite signal or remove a single channel from a composite signal.  The L-COM PCW5A-01357-24N3 is rated for industrial temperature function (-40c to +85c) for applications such as outside plant installation. The L-COM PCW5A-01357-24N3 has single channel 1571nm Add/Drop with other channels being passed. The L-COM PCW5A-01357-24N3 has 2 meter 250um colored fiber leads. The PCW5A-01357-24N3 is a single fiber filter for adding or removing a single wavelength from a COM signal. and are used in pairs for implementations using two fibers. L-COM produces the high quality passive filters that your business can rely on. With products continually in stock and same-day shipping, our expert technical support and knowledgeable sales team can get you to the right parts for the job.

Features
  • Passive
  • CWDM
  • 20nm spacing
  • Barrel filter (34mmx5.5mm)
  • Single channel OADM
  • CWDM 1571nm
  • 2m 250um colored fiber leads
  • Pass fiber for unused CWDM channels
  • industrial temperature (-40c ~ 85c)

Application
  • Single Mode Fiber Networking
  • Single Fiber
  • single channel OADM function
  • Metro transport
  • Regional Distribution
  • Outside Plant (OSP) Operation


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
