Pressure Sensor, 0-70MPa, Sealed Gauge, Compensated, with cap 16.8mm diameter

SKU PS783-I19SL1
QTY available 1
Quantity Price
1 - 24 $40.39
25 - 49 $38.37
50 - 99 $36.35
100 + Call Us
Price $40.39

All Prices are in US Dollars and do not include duties

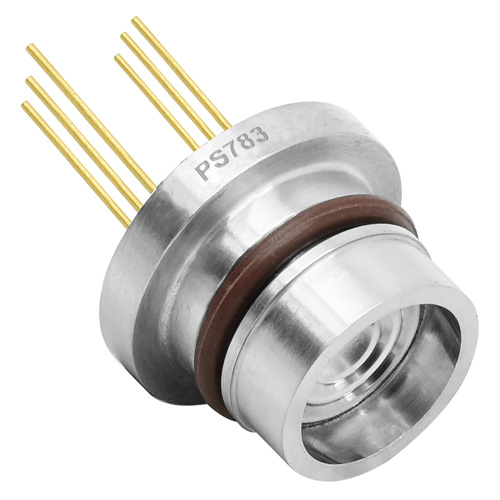

PS783-I19SL1 is a highly stable and reliable piezo-resistive pressure sensor with wide temperature compensation and zero correction. Optimized for middle to high pressures, the PS783-I19SL1 contains a highly stable silicon die, stainless steel 316L housing with diameter 12.6 mm. The measured pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal.

Features
  • 12.6mm compact size
  • Long-term stability ±0.1%FS/year
  • Pressure range: 0-70MPa
  • Isolated construction, enable to measure various fluid media
  • Wide temperature compensation range

Application
  • Aviation and navigation systems
  • Cooling equipment and air conditioning systems
  • Level measurements
  • Gas and liquid pressure measurements
  • Industrial process control


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
