Pressure Sensor, 0-2 MPa, Stainless 316L, high static pressure 20MPa, 1.5X overpressure

SKU PD790-12M2
Available to Ship 3
Quantity Price
1 - 9 $65.99
10 - 24 $63.35
25 - 99 $60.71
100 + Call Us
Price $65.99

All Prices are in US Dollars and do not include duties

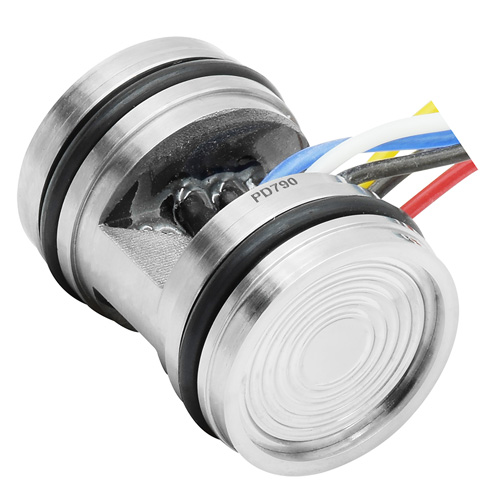

PD790-12M2 is a highly stable and reliable piezo-resistive pressure sensor with wide temperature compensation and zero correction. It contains a highly stable silicon die, stainless steel 316L housing with diameter 19 mm. The measured differential pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal.

Features
  • Constant Current/Constant Voltage power supply
  • High Static Pressure 20MPa
  • Isolated Construction, enable to measure various liquids and gases
  • Long-term stability ±0.3%FS/Year
  • Pressure range: 0-2MPa

Application
  • Differential pressure measurement
  • Venture and eddy-current flow meter
  • Gas, liquid pressure measurement
  • Industrial process control
  • Pressure checking meter
