Highly Stable Pressure Sensor, 0-7kPa, Gauge, Compensated, 19mm diameter

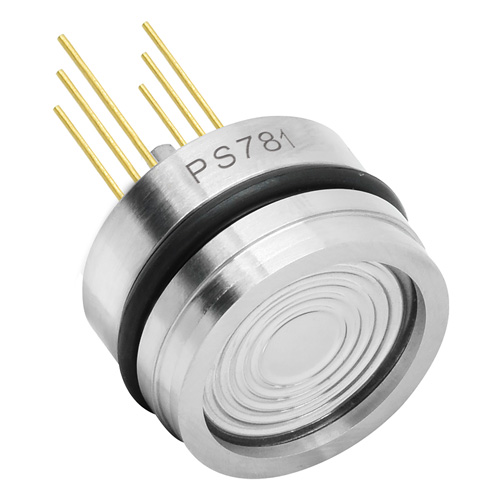

  • Picture of Highly Stable Pressure Sensor, 0-7kPa, Gauge, Compensated, 19mm diameter
Picture of Highly Stable Pressure Sensor, 0-7kPa, Gauge, Compensated, 19mm diameter
SKU PS781-0CG0L1
Available to Ship 2
Quantity Price
1 - 24 $125.99
25 - 49 $120.95
50 - 99 $117.17
100 + Call Us
Price $125.99

All Prices are in US Dollars and do not include duties



PS781-0CG0L1 is a highly stable piezo-resistive pressure sensor with wide temperature compensation and zero correction. It contains a highly stable silicon die, stainless steel 316L housing with diameter 19mm. The measured pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal.

Features
  • Isolated construction, enable to measure various media
  • Long-term stability ±0.1%FS/year
  • Pressure range: 0-7kPa
  • Wide temperature compensation
  • 19mm diameter OEM pressure sensor

Application
  • Cooling equipment and air conditioning systems
  • Gas and liquid pressure measurements
  • Industrial process controls
  • Level measurement
  • Aviation and navigation systems
