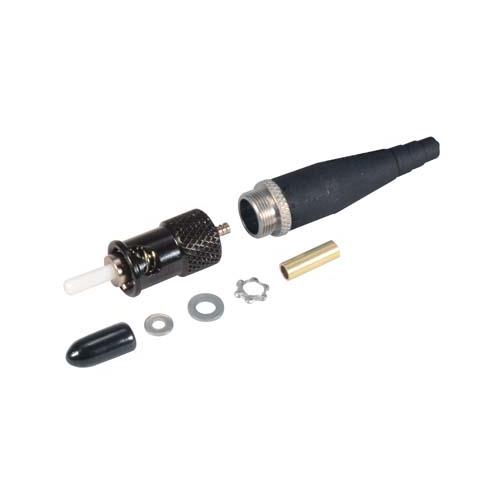

Ruggedized COTS ST Connector, Multimode Locking Nickel Plated Brass for 2mm fiber

Item # FOC-RSTMMLN1
Availability
Call Us
Price Table
Quantity Price
1 + $15.06
Add to Cart

Description

L-com's Commercial off the Shelf line of ST connectors and couplers are designed to be a more economical counterpart to the MIL-C-M83522 line of ST products. They feature non-optical disconnect with nickel-plated brass or stainless steel configurations that are available either as a ST connector or coupler. These highly durable connectors are built to withstand extreme temperature change, shock, vibration and corrosion. They are ideal for harsh environments and industrial process applications. The connectors are available in either a locking or non-locking variation and use a convenient screw boot that eliminates the need for a cumbersome boot tool. The locking model features locking washers that prevent accidental optical disconnects, making the connector less sensitive to cable pull force or constant mechanical shock and vibration. The non-locking model features a higher force spring that reduces sensitivity to mechanical shock. Both models feature a keyed bayonet latch for easy engagement and disengagement. The zirconia ferrule is backwards compatible with legacy transceivers and ensures loss repeatability. Ruggedized dust caps are available for both the ST connectors and couplers. Contact L-com today about custom fiber assemblies to meet your exact application needs.

Features
  • Connectors can take over 50 lb-ft of pull strength without damage
  • Economical alternative to MIL-C-M83522 parts
  • Ruggedized connectors and couplers for situations where standard parts will not suffice
  • Locking versions prevent optical disconnects from high shock or vibration environments
  • Screw-On boot eliminates the need for a boot tool thereby making installation easy and simple
Application
  • Harsh Environment
  • Factory Automation
  • Industrial Process
