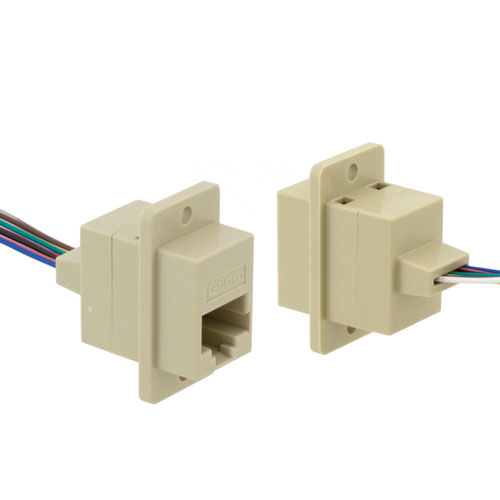

Modular Panel Jack, Cat 3, RJ45K (8x8K) / Wires, 30µ, Ivory

SKU ECJ5048-L
Available to Ship Call us
Quantity Price
1 - 24 $9.19
25 - 49 $8.73
50 - 99 $8.27
100 + Call Us
Price $9.19

All Prices are in US Dollars and do not include duties



L-com's exclusive line of panel mount jacks is the perfect choice for passing modular cables through a rack panel or wall plate. The unique flange mount design accepts #4 or #5 screws for secure mounting of these couplers to any panel (purchased separately). Contacts have 30 microinches of gold plating for durability and the ivory plastic shell is UL94V-0 rated. 10" wire leads allow you to connect directly to a PC board or another connector. These couplers can be used for either voice or data applications. Large volume discounts offered; Call today.

Features
  • Cat 3 rated Panel mount RJ11/12 and RJ45 jacks with 10" wire leads for voice or data applications
  • Sturdy snap together design with integrated PCB for superior electrical performance
  • 10" wire leads allow connection directly to a PC board
  • 30 microinches gold plating for a durable connection with UL94V-0 rated ivory plastic shell for ruggedness
  • Flange mount design accepts #4 or #5 screws for secure panel mounting

Application
  • Data
  • LAN
  • Telecommunications
  • Voice


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
