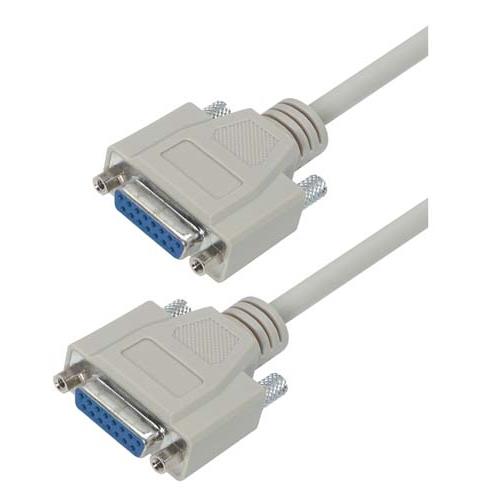

Deluxe Molded D-Sub Cable, DB15 Female / Female, 1.0 ft

SKU CSMN15FF-1

Available to Ship 84

Quantity Price

1 - 24 $36.99

25 - 49 $35.14

50 - 99 $33.29

100 + Call Us

Price $36.99

Quantity

All Prices are in US Dollars and do not include duties

L-com's CSMN family of D-sub cable assemblies offer solid performance at economical prices. Fully shielded throughout the entire cable to prevent against data corrupting EMI/RFI. Molded backshells provide superior strain relief while robust 26 AWG conductors are wired straight through for ease of compatibility. Metal thumbscrews insure fast and easy connections. Custom lengths and pinouts are available with modest minimum requirements.

Features

360 degree fully shielded for protection against EMI/RFI
Gold plated contacts provide reliable connections with repeated mating cycles
Hex nuts on female connectors are removable to expose 4-40 thumb screws
DB15 female to female connectors; lengths range from 1.0 ft to 50 ft; color is light gray
Wired straight through for extending serial devices/peripherals

Application

Data Networking
Test and measurement applications
Uninterruptible power supply communications
RS-232 serial communications

Product Resources

2D Drawing (.pdf)

Product Compliance

REACH status

Not Available

RoHS status

Not Available

TSCA status

Not Available

PFAS status

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
