25 Conductor 20 AWG Double Shielded Bulk Cable, 500.0 feet

SKU CSCPMS25-500
QTY available 12
Quantity Price
1 + $5,230.00
Price $5,230.00

All Prices are in US Dollars and do not include duties

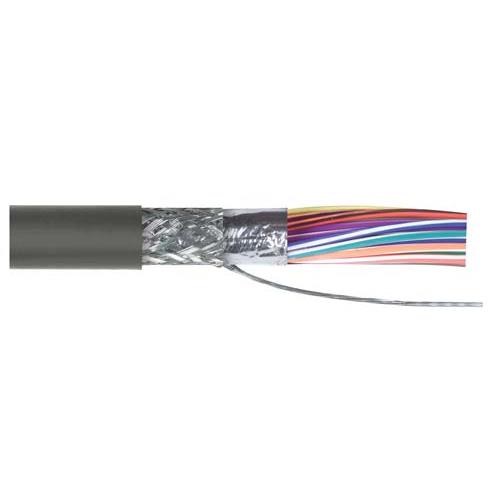

Large gauge cable is now available for applications requiring higher current than typical data systems use. Features a dark gray UL2464 listed PVC jacket, aluminum mylar foil shield, tinned copper braid and (25) 20 AWG stranded conductors. Available in 100, 500 or 1,000 foot spools.

Features
  • 20 AWG conductors provide up to 10 amps per conductor
  • Available in 100, 500 & 1,000 ft put-ups
  • Braid + foil shield to protect against EMI/RFI
  • Color is dark gray
  • Ratings: UL2464, 300 volt, 80 degrees Celsius

Application
  • Data signal transmission
  • EMI/RFI rich environments
  • Industrial networks
