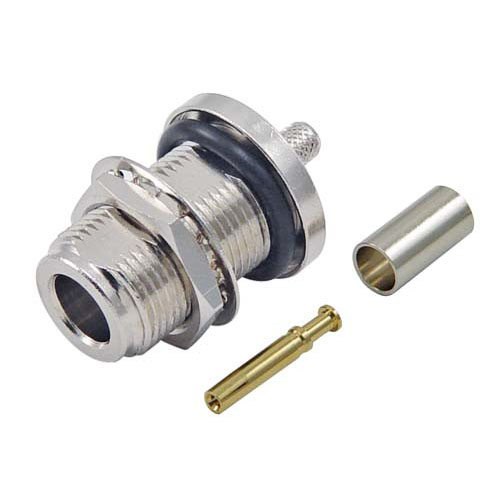

Type N Female Crimp Bulkhead for RG58, 195-Series Cable

SKU ANF-3700
Available to Ship 100
Quantity Price
1 - 24 $11.39
25 - 49 $10.25
50 - 99 $9.11
100 + Call Us
Price $11.39

All Prices are in US Dollars and do not include duties



This Type N Female Crimp Bulkhead Connector is designed for use with RG58 and 195-series cable. The ANF-3700 Can be used with RG58, RG141, RG142‚ L-com CA-195‚ WBC--195‚ LMR®195‚ Belden 8240 and Belden 8219 cable types. This connector is designed for use in the wireless space as well as 802.11a/b/g/n. The bulkhead design allows for the connector to provide extra resistance against pulling of the cable. Order online today!

Features
  • Features Nut, Lock Washer and O-Ring for securing to bulkhead
  • Can be used with RG58/141/142‚ L-com CA-195‚ WBC195‚ LMR®195‚ Belden 8240/8219 cable types

Application
  • Antenna pigtail
  • Wireless networks
  • WLAN
  • 802.11a/b/g/n
  • WiFi


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Body Style
Straight
Mount Method
Bulkhead
Minimum Frequency
DC
Maximum Frequency
3 GHz
Interface Type 1
RG58
Interface Type 2
RG141
Interface Type 3
RG142
Interface Type 4
CA-195
Interface Type 5
WBC195
Interface Type 6
Belden 8219
Interface Type 7
Belden 8240

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
