SMA Terminator, Male, 50 Ohm

SKU BTS5M
QTY available 628
Quantity Price
1 - 24 $11.79
25 - 49 $11.20
50 - 99 $10.61
100 + Call Us
Price $11.79

All Prices are in US Dollars and do not include duties

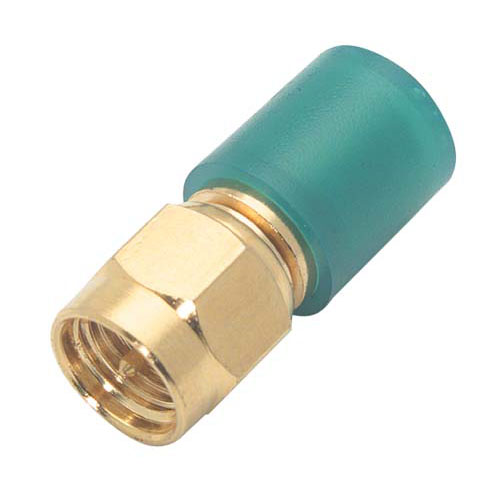

This SMA male terminator features a green color coded cap indicating a 50 Ohm resistance value for use with 50 Ohm coaxial cable such as RG58.

Features
  • Color coded green cap to assure proper mating
  • Gold plated body provides optimum resistance to corrosion
  • Gold plated contacts minimize attenuation
  • Termination of a 50 Ohm transmission line with SMA connectors

Application
  • 50 Ohm applications
  • Amplifier
  • WLAN
  • Coaxial termination


Documents and Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
50 Ohm
Maximum Frequency
1 GHz
Maximum VSWR
2:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Body Material
Brass
Connector Series
SMA
Connector Gender
Male
Package Family
Coax
