SMA Terminator, Female, 50 Ohm

SKU BTS5F
QTY available 634
Quantity Price
1 - 24 $13.79
25 - 49 $13.10
50 - 99 $12.41
100 + Call Us
Price $13.79

All Prices are in US Dollars and do not include duties

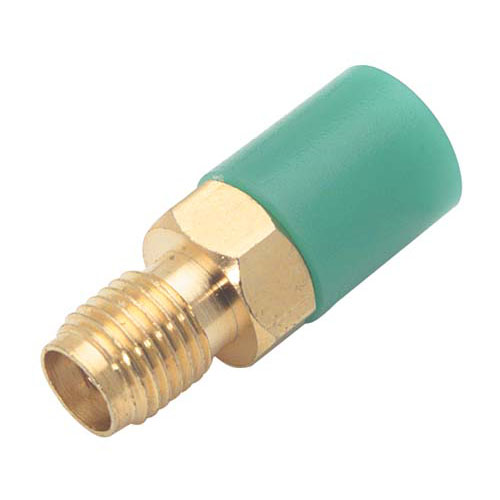

This SMA female terminator features a green color coded cap indicating a 50 Ohm resistance value for use with 50 Ohm coaxial cable such as RG58.

Features
  • Color coded green cap to assure proper mating
  • Termination of a 50 Ohm transmission line with SMA connectors
  • Gold plated body provides optimum resistance to corrosion
  • Gold plated contacts minimize attenuation

Application
  • 50 Ohm applications
  • Amplifier
  • WLAN
  • Coaxial termination


Documents and Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
50 Ohm
Maximum Frequency
1 GHz
Maximum VSWR
1.5:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Body Material
Brass
Connector Series
SMA
Connector Gender
Female
Package Family
Coax
