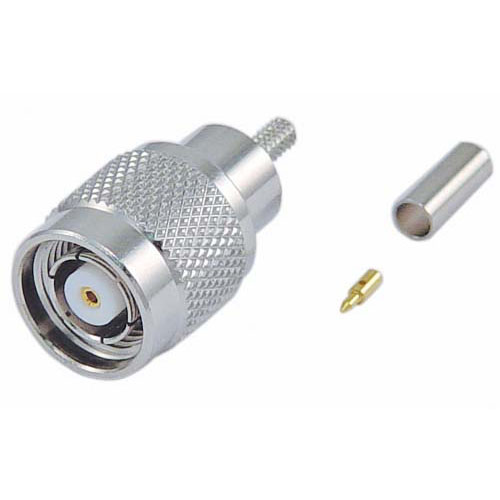

RP-TNC Crimp Plug for RG316/174/188, 100-Series Cable

SKU ARTP-1100
Available to Ship 240
Quantity Price
1 - 24 $11.79
25 - 49 $10.61
50 - 99 $9.43
100 + Call Us
Price $11.79

All Prices are in US Dollars and do not include duties



This Reverse Polarity TNC Plug is built for use with RG316, RG174, RG188 and 100-series Cable. The ARTP-1100 is designed to work in a wide range of applications such as WLAN, Radio Pigtails and Low Loss coax applications. This connector utilizes its gold plated pin to prevent against signal loss during use. This L-com part is also rated for cable retention of over 30 pounds so accidental tugs and pull will not damage the cable or connector. Order online today!

Features
  • Gold plated contact pins to minimize signal loss
  • Designed for use with RG316/174/188 and 100-series cable

Application
  • Low Loss Coax Applications
  • Radio Pigtails
  • RF Applications
  • Wi-Fi Applications
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Reverse Polarity
Connector Series
TNC
Connector Gender
Plug
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
4 GHz
Interface Type 1
RG136
Interface Type 2
RG174
Interface Type 3
RG188
Interface Type 4
100-Series

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
