RP-TNC Crimp Plug for 300-Series Cable

SKU ARTP-1312
Available to Ship 197
Quantity Price
1 - 24 $8.79
25 - 49 $7.91
50 - 99 $7.03
100 + Call Us
Price $8.79

All Prices are in US Dollars and do not include duties

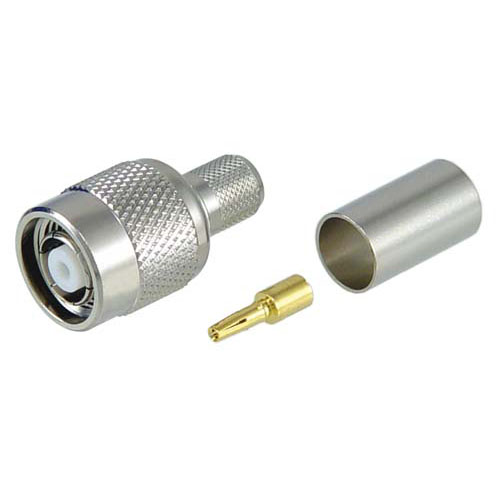

The L-com ARTP-1312 is a Reverse Polarity TNC connector for 300-series cable. This connector is a crimp style termination to ensure the cable is secure during installation. Utilizing the gold plated contact to minimize signal loss, this Reverse Polarity TNC Connector is made for applications such as wireless and coaxial cable assembly. This connector works with WBC-300‚ LMR®300 and Belden 7809 cable types. Other technical specs include a cable retention of over 40 lbs. and a frequency range of 0~11 GHz. Order online today!

Features
  • Must be Purchased in Increments of 10
  • Can be used with WBC300‚ LMR®300, Belden 7809 cable types

Application
  • RF Applications
  • Low Loss Coax Applications
  • Radio Pigtails
  • Wi-Fi Applications
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Reverse Polarity
Connector Series
TNC
Connector Gender
Plug
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
6 GHz
Interface Type 1
300-Series
Interface Type 2
WBC300
Interface Type 3
Belden 7809

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
