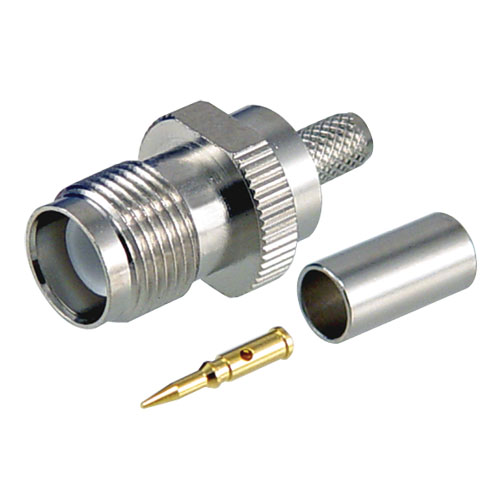

RP-TNC Crimp Jack for RG58, 195-Series Cable

SKU ARTJ-1708
QTY available 747
Quantity Price
1 - 24 $7.09
25 - 49 $6.38
50 - 99 $5.67
100 + Call Us
Price $7.09

All Prices are in US Dollars and do not include duties



The Reverse Polarity TNC Jack from L-com is designed for RG58 and 195-series Cable. The ARTJ-1708 takes advantage of its gold plated contact to aid against signal loss during use. This connector is compatible with RG58, RG141, RG142‚ WBC-195‚ LMR®195‚ Belden 8240, and Belden 8219 cable types. Primary applications for this connector are WLAN, Wireless and Low loss coax applications. Order online today!

Features
  • Can be used with HyperLink CA-195R, RG58/141/142‚ HyperLink CA195RW‚ WBC195‚ LMR®195‚ Belden 8240/8219 cable types

Application
  • Low Loss Coax Applications
  • Radio Pigtails
  • RF Applications
  • Wi-Fi Applications
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Reverse Polarity
Connector Series
TNC
Connector Gender
Jack
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
4 GHz
Interface Type 1
RG58
Interface Type 2
195-Series
Interface Type 3
RG141
Interface Type 4
RG142
Interface Type 5
WBC195
Interface Type 6
Belden 8240
Interface Type 7
Belden 8219

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
